Ready for a Productive Harvest ?

Get Off to the Right Start With Geniune John Deere Draper & Platform Parts that feature a Full Year Warranty when Dealer Installed.



John Deere Platform Checklist

Cutterbar                            CONDITION                                        Customer OK's               Repair     New Specification

                                OK          Repair / Replace               Needs Adjusted

Knifeback

Knife Head

Sickle Sections

Knife - Quick-Adjust Guards

Knife - Hold Downs

Knife Drive Gearcase

Float Arm (6 inch range)

Header Height  Control

Knife Drive - Belt Pulleys & Idler

Stone Dam

Polyskid Shoe Pads

Knife Drive - Belt

Stainless Steel Flex Feed Plate

Cutter Bar

HydraFlex Float System

                Bleed System

                Cylinders, Hoses & Couplers

Auger                 CONDITION                                        Customer OK's               Repair     New Specification

                                OK          Repair / Replace               Needs Adjusted

Flighting

Tube

Outer Shaft Bearings

Fingers

                Composite or Steel

                Retainers/Guides

                Timing                                                                   Min. of 16mm (5/8 in) to Floor or Flex hold down bar in the Center of the Platform

                Bearings

Finger Cranks, Shafts & Bearings

Drive Chain

Drive Chain Sprockets

Power Shafts & Bearings

Slip Clutch

Auger Strippers

                Floor Stripper                                                                    3mm (1/8 in.) between the stripper and Auger Flighting

                Back (Rear) Stripper                                                                        6mm (1/4 in.) min clearance between Auger & Fixed Stripper; 3mm (1/8 in.) clearance between Auger & Adjustable Stripper.

Reel                       CONDITION                                        Customer OK's               Repair     New Specification

                                OK          Repair / Replace               Needs Adjusted

Fingers

Finger Tubes

Finger Tube Bearings

Outer Spider Bearings

Spur - Driven Gear

Pinion - Drive Gear

Plastic Sliding Pads on Arms

Outer Support Bushings

Center Shaft Bushings

Arm Pivot Bushings

Raise/Lower Cylinders

Fore/Aft Cylinders

Reel - continued                               CONDITION                                        Customer OK's               Repair     New Specification

                                OK          Repair / Replace               Needs Adjusted

Reel Relief Valve

Hydraulic Lines, Couplers & Dust Covers

Dial-A-Matic/Reel Speed

Reel Height                                                                                         P/U Reel - min 38mm (1 1/2 in.) between tips of fingers to cutter bar; Slat Reel - min 25mm (1 in) clearance between slats & cutter bar

Five Slate Metal Reel or Finger reel

Miscellaneous                   CONDITION                                        Customer OK's               Repair     New Specification

                                OK          Repair / Replace               Needs Adjusted

Multi-coupler

Drive shaft

Frame

Header Drop Rate

Divider Points

Header Height Sensing

                Calibration / Error Codes

                Wiring / Sensors

                Linkage

Contour Master Calibration

Warning / Turning Lights

Wiring Harnesses

Stubble Lights and Wiring

Decals

Shields

Drive Shafts, Bearings, Splines & Safety Shields



John Deere Draper Checklist

Cutterbar                            CONDITION                                        Customer OK's               Repair     New Specification

                                OK          Repair / Replace               Needs Adjusted

Knifeback

Knife Head

Sickle Sections

Knife - Guards

Knife - Hold Downs                                                                                          Clearance - normal 0.5mm (0.020 in), min 0.3mm (0.012 in)

Knife Drive Gearbox

Knife Drive - Belt

Knife Drive - Belt Tensioner & Pulleys

Knife Drive - Powershafts

Skid Plates (if equipped)

Tilt Adjustment                                                                                See Initial Crop Settings Chart

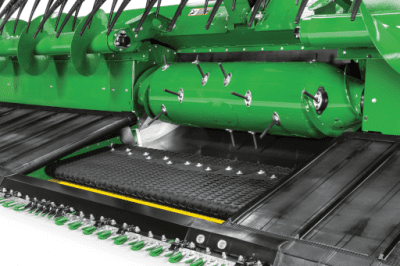

Conveyor Belts                  CONDITION                                        Customer OK's Repair     New Specification

                                OK          Repair / Replace               Needs Adjusted

Conveyor Belts

                Side Belts                                                                            Tension - max of 50 mm (2 in) past tension gauge

                Center Belt                                                                         Tension - max of 25 mm (1 in) outside edge of guard to end of spring cap

Side Belt Debris Slots (behind cutter bar under side belts)

Splices

Hydraulic Motors

Hydraulic Pump

Rollers & Bearings

Variable Speed Control Valve

Feed Drum                          CONDITION                                        Customer OK's Repair     New Specification

                                OK          Repair / Replace               Needs Adjusted

Pivot Arm Bushings & Bearings

Auger Tube

                Height                                                                   See Initial Crop Settings Chart

                Flighting

Fingers

                Composite or Steel

                Finger Retainers/Guides

                Timing                                                                   See Initial Crop Settings Chart

Finger Cranks, Shafts & Bearings

Reel                       CONDITION                                        Customer OK's Repair     New Specification

                                OK          Repair / Replace               Needs Adjusted

Fingers

Finger Tubes

Finger Tube Bearings

Reel End Fingers (if equipped)

Outer Spider Bearings

Spur - Driven Gear

Pinion - Drive Dear

Plastic Sliding Pads on Arms

Outer Support Bushings

Center Shaft Bushings

Arm Pivot Bushings

Raise/Lower Cylinders

Fore/Aft Cylinders

Drive Motor

Hydraulic Lines, Couplers & Dust Covers

Reel Height                                                                                         Min 38mm (1 1/2 in.) between cutter bar and tips of fingers or edge of slat

Five Slate Metal Reel

Gauge Wheels and Transport (if equipped)                          CONDITION                                        Customer OK's Repair     New Specification

                                OK          Repair / Replace               Needs Adjusted

Gauge Wheel Air Bags                                                                                    Pressure - 30-80psi  - 100 psi max

Gauge Wheel Arm - Bushings (both mainframe & kingpin)

Wheels & Tires                                                                                  Pressure - 44psi

Wheel Hub Bearings

Transport System

                Tongue and Wheel Frames

Miscellaneous                   CONDITION                                        Customer OK's Repair     New Specification

                                OK          Repair / Replace               Needs Adjusted

Frame

Float Lockout Chain

Divider Points

Crop Lifters

Wiring Harnesses

Lights

Dial -A-Speed Sensor

Decals

Shields

Hydraulic Manifold Block

Feed Drum Slip Clutch

Transfer Gearcase

Drive Shafts, Bearings, Splines & Safety Shields
