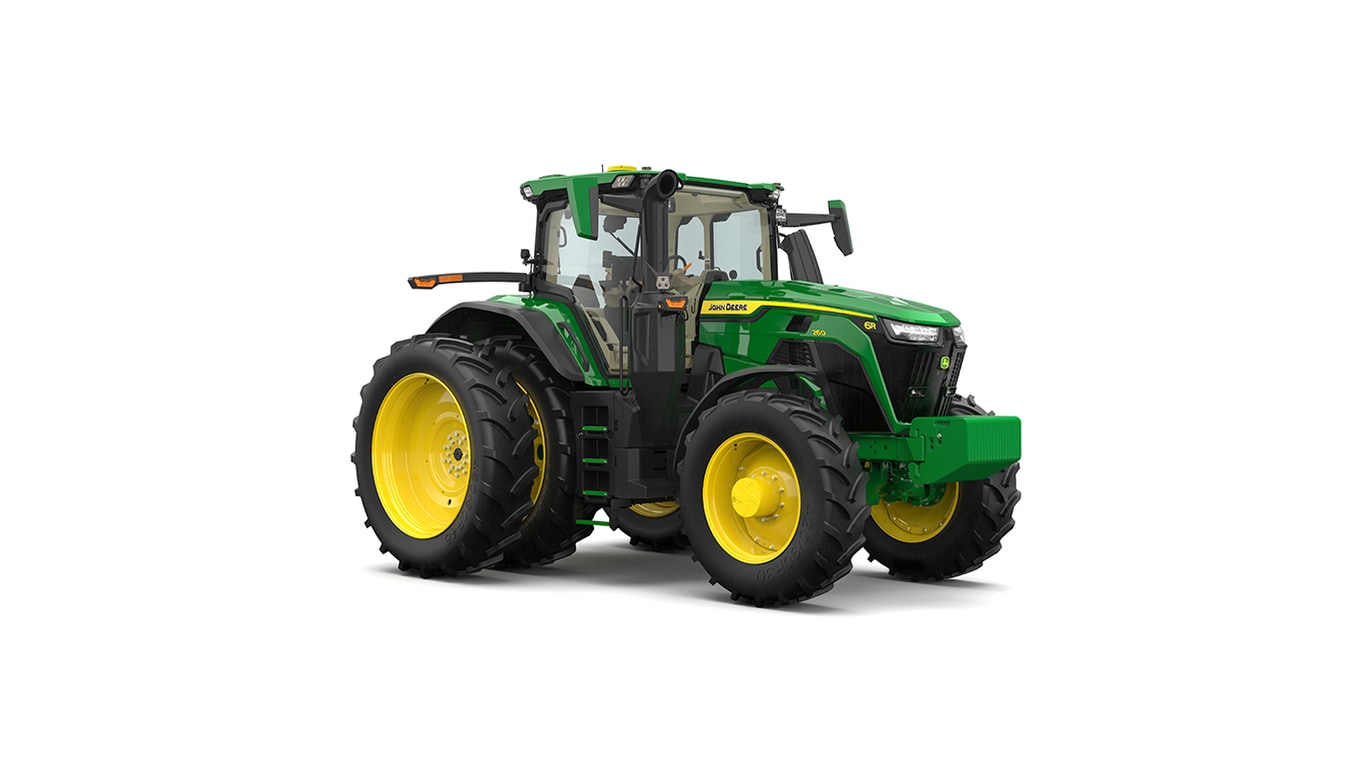

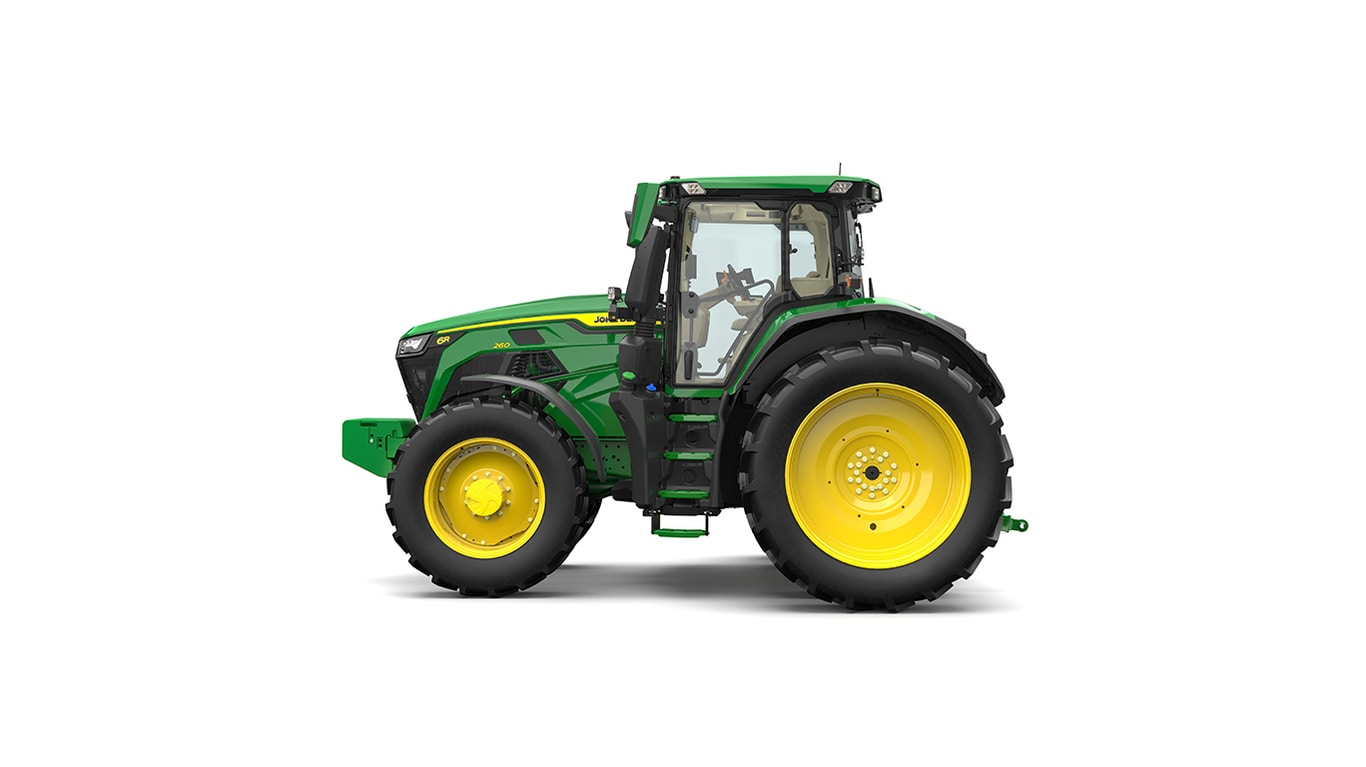

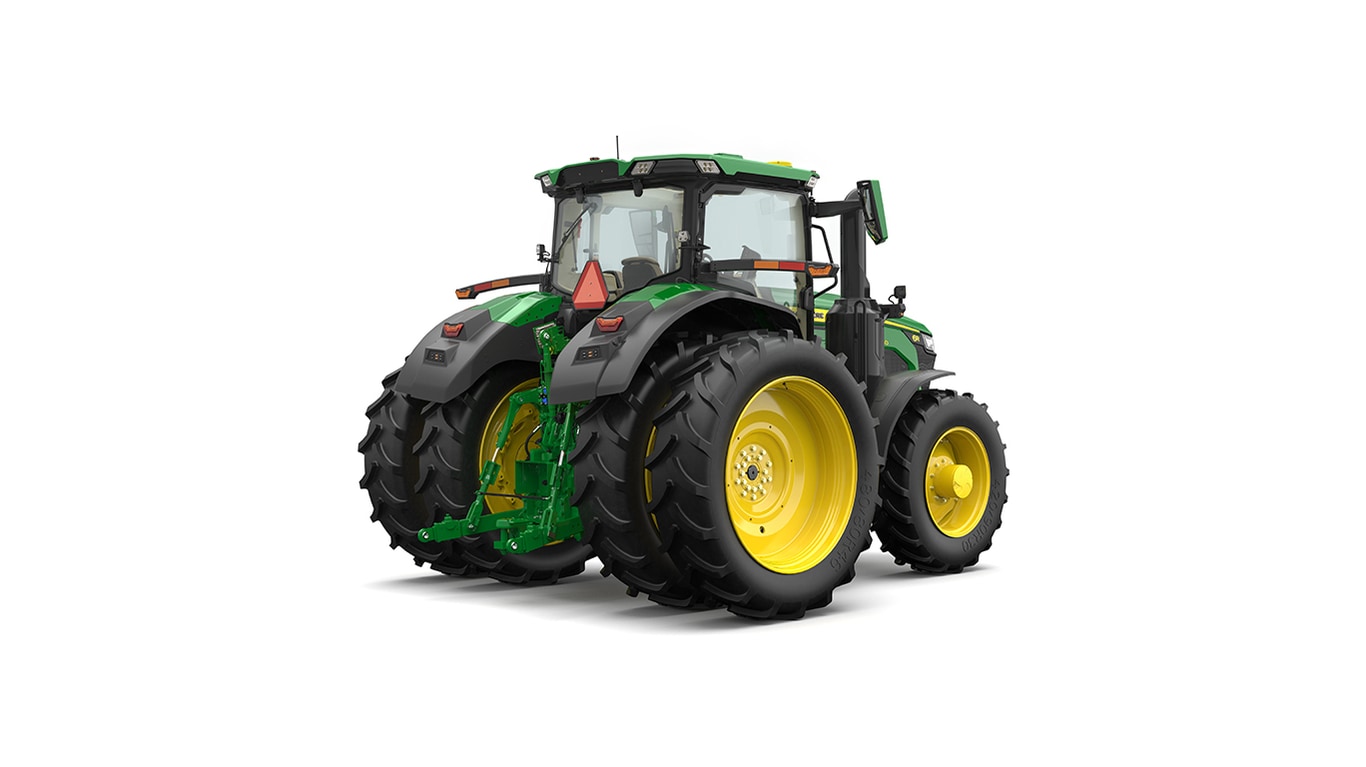

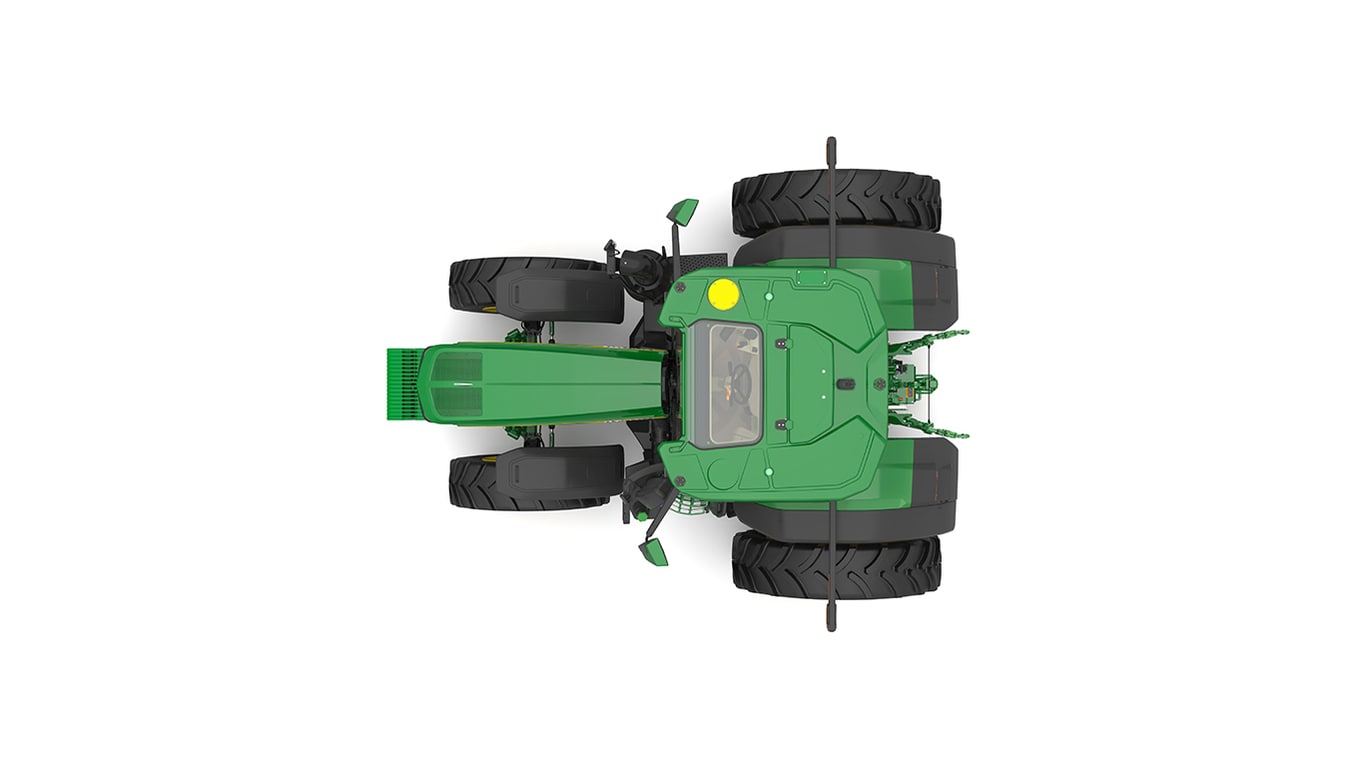

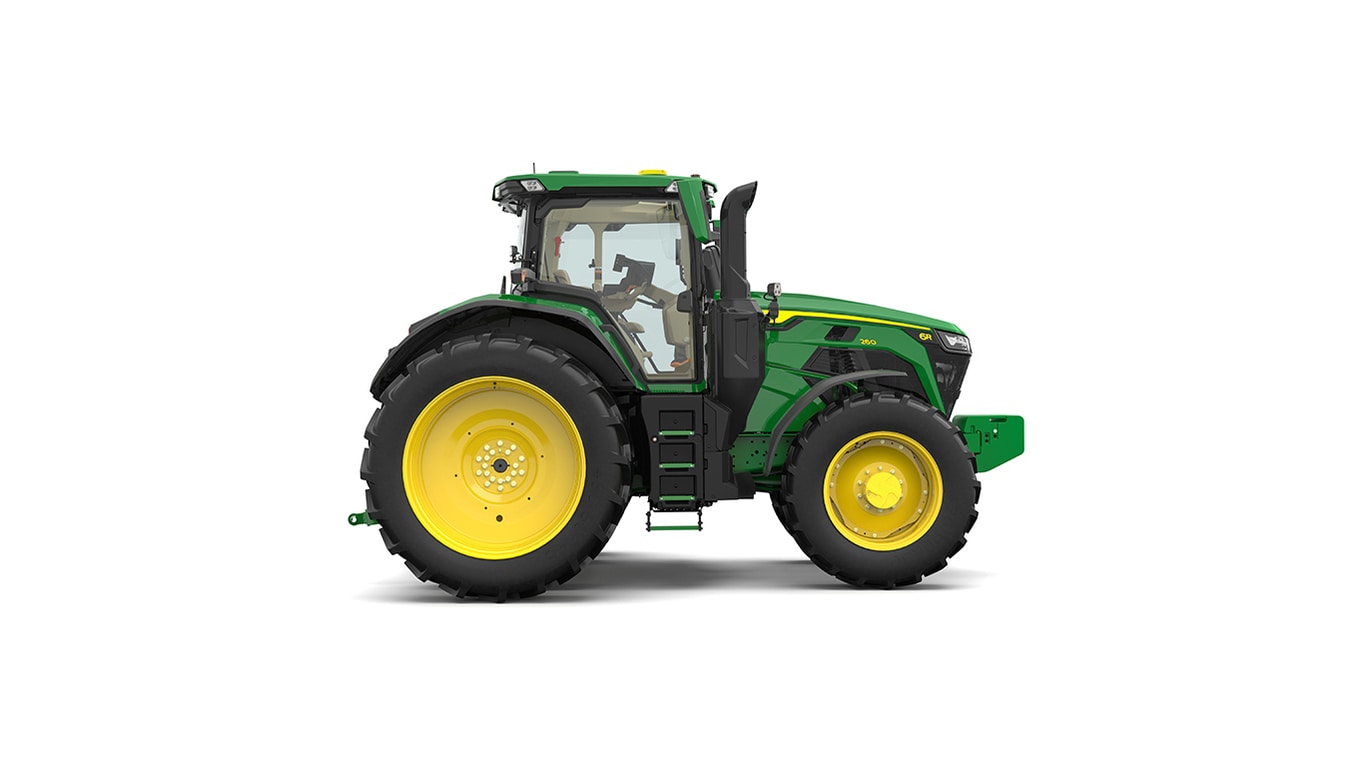

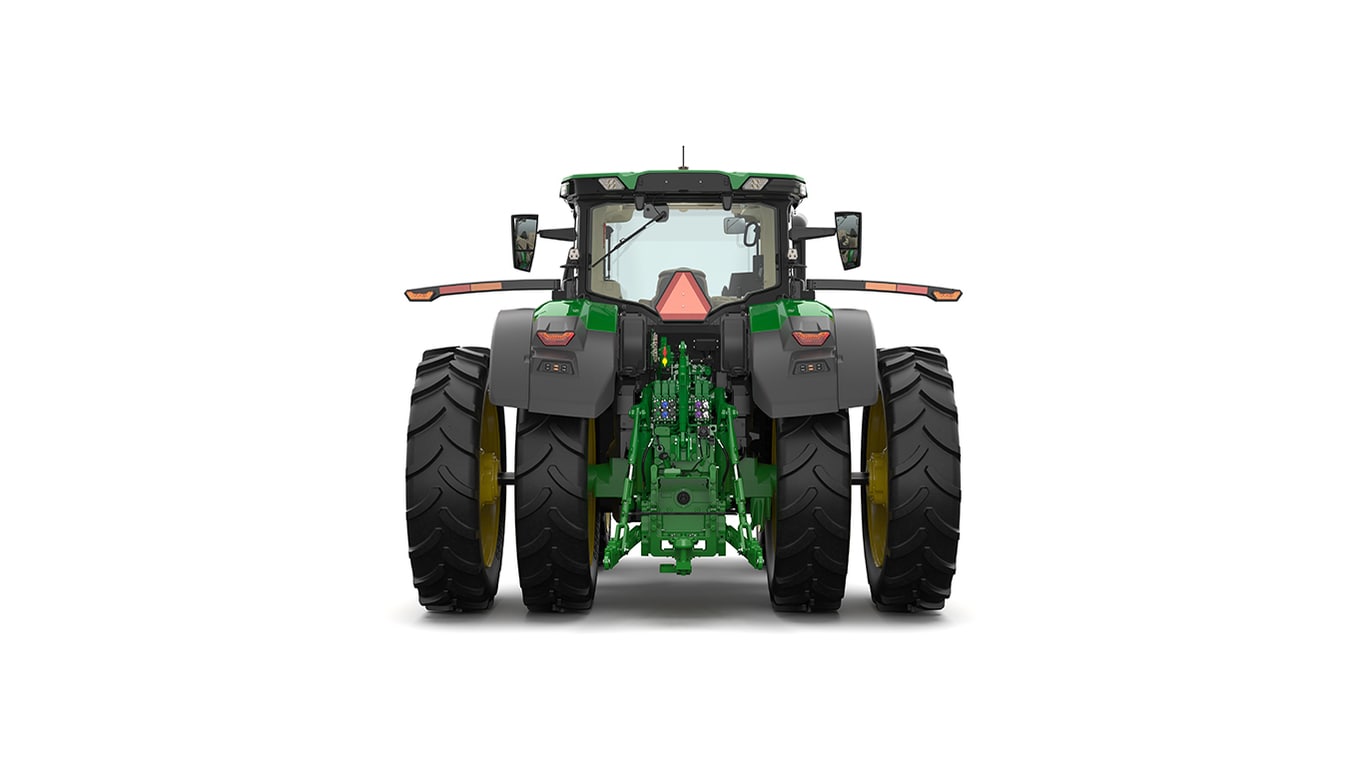

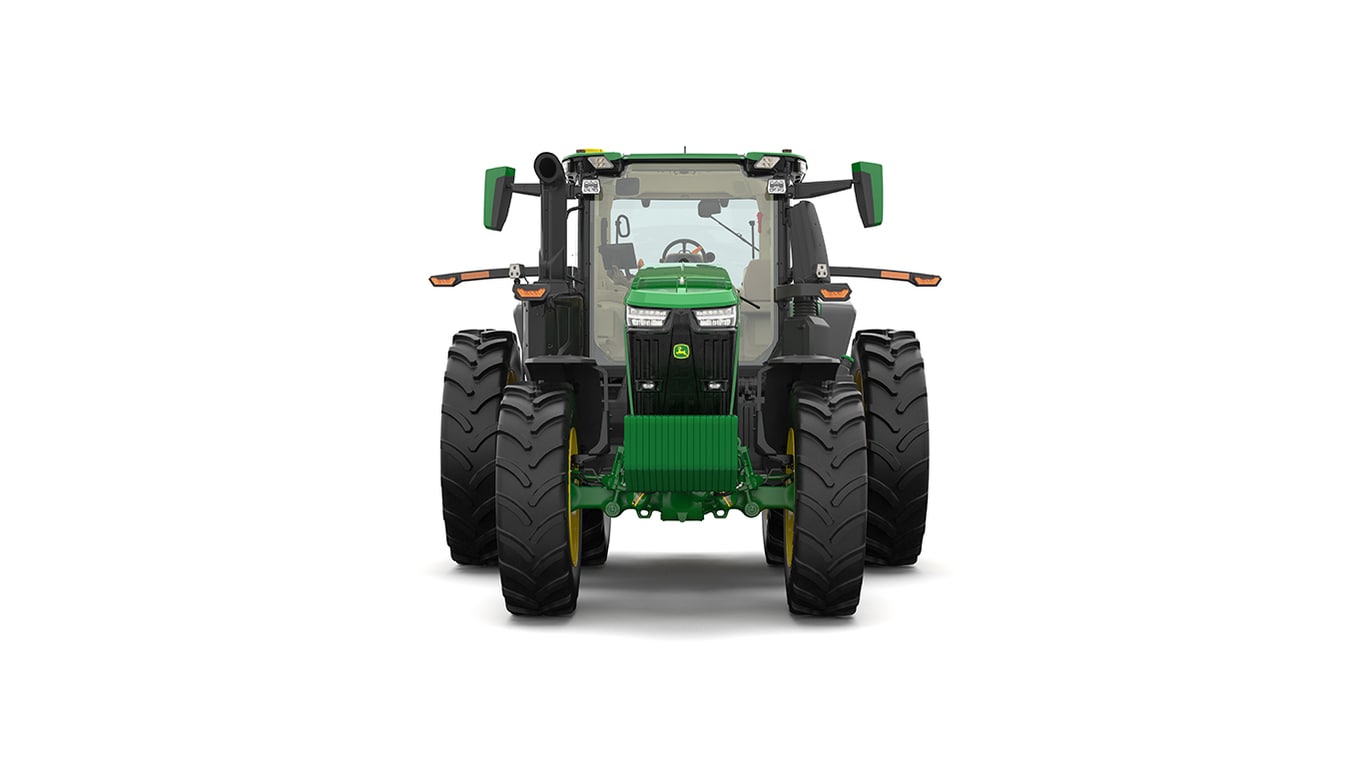

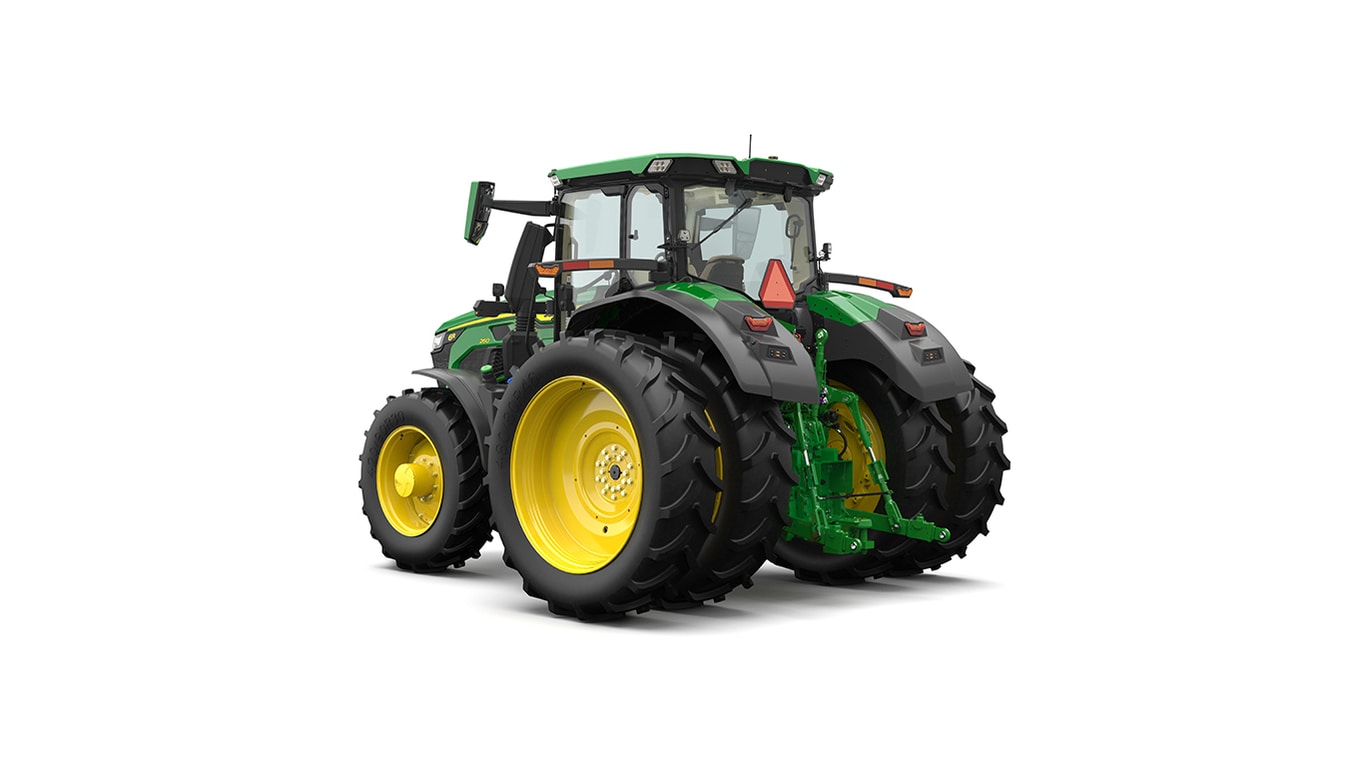

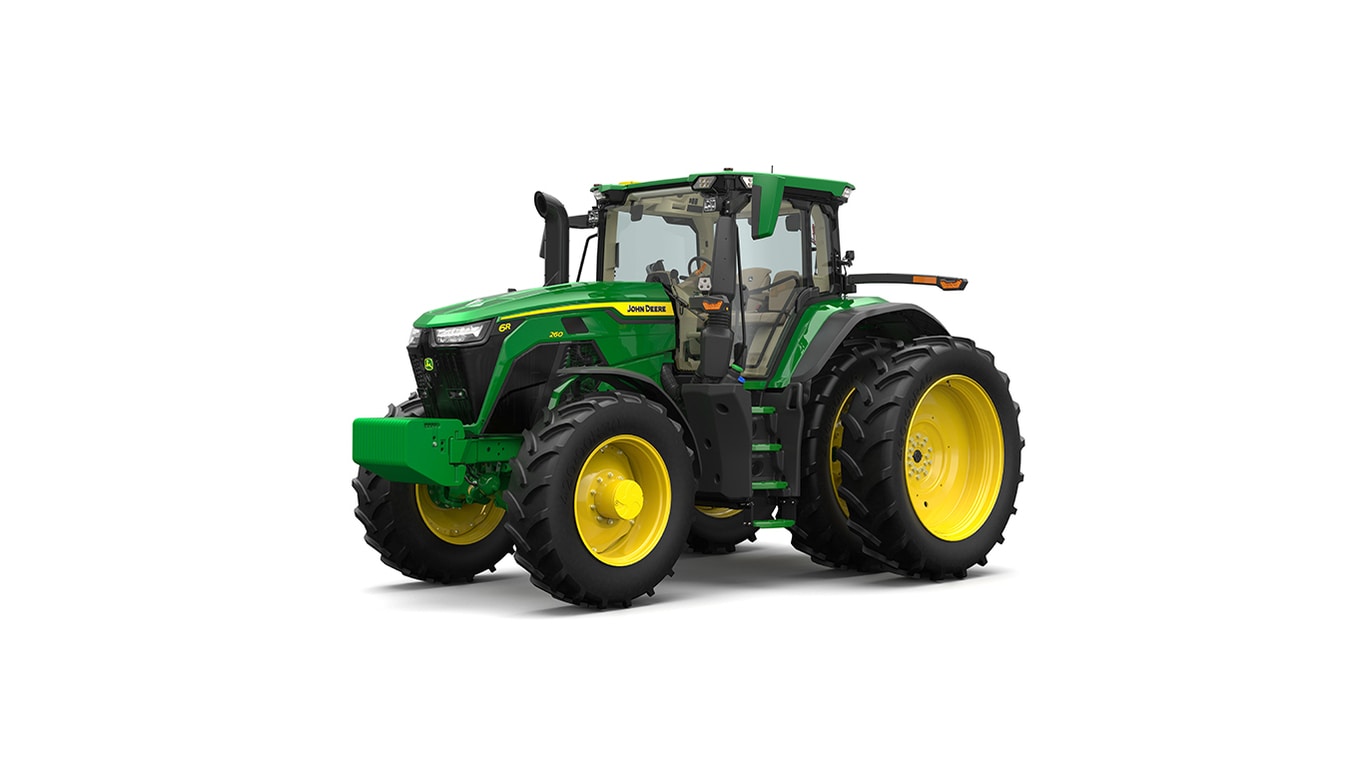

Tractor - 6R 260 Back
Model Number :
6R 260
Learn about the 6R 260, a transport tractor with high power density for quick acceleration.
- Engine HP: 286 HP Max (213 kW)/260 HP (194 kW) with up to 40 additional HP (30 kW) (IPM)
- e19™ PowerShift™ or IVT™ transmission for delivering efficient power to the ground
- Ergonomic design and optimized visibility
- Enhanced front axle and cab suspension for responsive road handling and comfort during transport
Key Specs
Engine Make
John Deere
Engine Model
John Deere PowerTech PSS
Engine Family
VJDXL06.8309
Displacement (L)
6.8
Displacement (cu in.)
418
Rated Engine Power (hp)
256
Rated Engine Power (kw)
191
Rated Engine Power (PS)
250
Transmission Type
Standard: John Deere AutoPowr™/IVT™ 40 km/h
Optional: John Deere AutoPowr™/IVT™ 50 km/h km/h
John Deere e19™ PowerShift 40 km/h & 50 km/h
Optional: John Deere AutoPowr™/IVT™ 50 km/h km/h
John Deere e19™ PowerShift 40 km/h & 50 km/h
Rear Hitch Category (SAE Designation)
Category 3/3N
Pump Rated Output
Standard: 210 L/min 55.5 gpm
Base Machine Weight (lb)
21716
Base Machine Weight (kg)
9850
Machine Configuration
Wheel or Track Configuration
Wheel
Drive Type
MFWD
Engine
Engine Make
John Deere
Engine Model
John Deere PowerTech PSS
Engine Family
VJDXL06.8309
Emissions Certifications
Final Tier 4
Displacement (L)
6.8
Displacement (cu in.)
418
Aspiration
Turbocharged, variable geometry turbo with fixed geometry turbo in series, air-to-air aftercooling and cooled exhaust gas recirculation
Number of Cylinders
Six
Cylinder Liners
Wet-sleeve
Aftertreatment Type
Cooled exhaust gas recirculation (EGR)
Diesel Particle Filter (DPF) with Diesel Oxidation Catalyst (DOC) and Selective Catalytic Reduction (SCR) using DEF
Diesel Particle Filter (DPF) with Diesel Oxidation Catalyst (DOC) and Selective Catalytic Reduction (SCR) using DEF
Intelligent Power Management (IPM)
40
Rated Engine Speed (rpm)
2,100
Rated Engine Power (hp)
256
Rated Engine Power (kW)
191
Rated Engine Power (PS)
250
Rated Engine Power with IPM (hp)
296
Rated Engine Power with IPM (kw)
221
Rated Engine Power with IPM (PS)
300
Maximum Engine Speed (rpm)
1,900
Maximum Engine Power (hp)
282
Maximum Engine Power (kW)
210
Maximum Engine Power (PS)
286
Maximum Engine Power with IPM (hp)
301
Maximum Engine Power with IPM (kW)
224
Maximum Engine Power with IPM (PS)
305
Maximum Engine Torque
1,217 Nm
897 lb-ft
897 lb-ft
Constant Power Range
1,500 - 2,100 rpm
Power Bulge (%)
10
Bore and Stroke (in.)
4.2 x 5.0
Bore and Stroke (mm)
106.5 x 127
Compression Ratio
16.7:1
Lubrication
Pressure lubrication
Cooling System Type
Liquid
Fuel Type
Ultra-low sulfur diesel
Air Cleaner Type
External dry-filter type air filter with pre-cleaning
Torque Rise (%)
40
Transmission
Transmission Type
Standard: John Deere AutoPowr™/IVT™ 40 km/h
Optional: John Deere AutoPowr™/IVT™ 50 km/h
John Deere e19™ PowerShift 40 km/h & 50 km/h
Optional: John Deere AutoPowr™/IVT™ 50 km/h
John Deere e19™ PowerShift 40 km/h & 50 km/h
Maximum Speed Forward
50 km/h
31 mph
31 mph
Minimum Speed Forward
0.03 km/h
0.02 mph
0.02 mph
Reverser
Left-hand electrical reverser
Cruise Control
Yes
Rear Power Take-Off (PTO)
Rated PTO Power (hp)
210
Rated PTO Power (kW)
157
Rated PTO Power (PS)
213
Economy PTO Speeds
540 rpm
1,000 rpm
1,000 rpm
Engine rpm at Rated PTO Speeds (540/540E/1.000)
1950/1721/1950
Engagement Method
Electrohydraulic switch
PTO Clutch
Multi-disk
Front PTO
Front Hitch
Front Hitch Category
Category 3N
Lift Capacity Through Full Lift Range at Coupling Points (lb)
9,700
Lift Capacity Through Full Lift Range at Coupling Points (kg)
4,400
Number of Front Selective Control Valves (SCVs)
Two
Electric Power
ISOBUS Connector
Rear Hitch
Rear Hitch Category (SAE Designation)
Category 3/3N
Lift Capacity Through Full Lift Range at 610-mm Behind Hitch Point
6,700 kg
14,770 lb
14,770 lb
Sensing Type
Electrohydraulic sensing
Draft Control Sensing
Yes
Drawbar
Drawbar Category
Cat 3
Maximum Vertical Load
3,000 kg
6,612 lb
6,612 lb
Hydraulics
Hydraulic System Type
Closed-center, pressure/flow compensated system
Pump Rated Output
210 L/min
55.5 gpm
55.5 gpm
Maximum Operating Pressure (psi)
2973
Maximum Operating Pressure (bar)
205
Number of Rear Selective Control Valves (SCVs)
Six
SCV Control
Electrohydraulic
Auxiliary Hydraulic Features
Yes
Front Axle
Front Axle Type
Triple Link Suspension (TLS Pro™) MFWD axle, Hydro-pneumatic, permanently active, triple link, self levelling suspension
Front Axle Differential Lock
Yes
Rear Axle
Rear Axle Type
Inboard planetary three pinion
Rear Differential Lock
Yes
Differential Control
Yes
Final Drive
Three planetary gear reduction
Steering &Brakes
Steering Type
Dynamic Load Sensing
Reactive Command Steering (RCS)
Reactive Command Steering (RCS)
Primary Brakes
Hydraulic actuation of rear axle brake and front axle brake (optional)
Secondary Brake
electo hydraulic actuated, integrated into service brake
Trailer Brakes
Optional: Air and/or hydraulic
Parking Brake
Intergrated parking brake
Tires
Tracks
Electrical System
Battery Voltage (V)
12
Electrical System Voltage (V)
12
Battery Cold Cranking Amps (CCA)
1800 CCA (2-95Ah / 900 CCA)
Battery Capacity
174 Ah
Alternator Capacity
250
Working Lights
Yes
Driving Lights
Yes
Operator Station
Seat Suspension
Mechanic / Pneumatic
Degree of Seat Swivel, Left Hand (degree (angle))
Select/Premium/Ultimate Seat: 7,5
Vision Seat 2.0: 16
Vision Seat 2.0: 16
Degree of Seat Swivel, Right Hand (degree (angle))
Select/Premium/Ultimate Seat: 30
Vision Seat 2.0: 32
Vision Seat 2.0: 32
Cab Suspension
Yes
Instructional Seat
Yes
Primary Display
Cornerpost Display
Radio
Standard
Inner Cab Volume (cu ft)
102.4
Inner Cab Volume (m³)
2.9
Cab Glass Area (sq ft)
63.5
Cab Glass Area (m²)
5.9
Technology Integration
Guidance
SF-RTK
Secondary Display
10,1 / 12.8 inch Command Center Display
Receiver
Intergrated StarFire™ 7500
Connectivity
JDLink™ Modem
Remote Diagnostics
Yes
ISOBUS Ready
Yes
Capacities
Fuel Tank Capacity (gal.)
107
Fuel Tank Capacity (L)
405
Diesel Exhaust Fluid (DEF) Tank Capacity (gal.)
5.5
Diesel Exhaust Fluid (DEF) Tank Capacity (L)
21
Cooling System Capacity (gal.)
9
Cooling System Capacity (L)
34
Transmission - Hydraulic System (gal)
21.9
Transmission - Hydraulic System (L)
83
Crankcase Oil Volume (gal)
6.2
Crankcase Oil Volume (L)
23.5
Dimensions & Weights
Wheelbase (in.)
114
Wheelbase (mm)
2,900
Base Machine Weight (lb)
21,716
Base Machine Weight (kg)
9,850
Overall Height (in.)
129.3
Overall Height (mm)
3,285
Transport Height (in.)
145.4
Transport Height (mm)
3,692
Overall Width (in.)
100.4
Overall Width (mm)
2,550
Overall Length (in.)
204.3
Overall Length (mm)
5,190
Maximum Permissible Weight (lb)
33,069
Maximum Permissible Weight (kg)
15,000
Additional Information
Country of Manufacture
Germany
Date Collected
8-Jun-26
