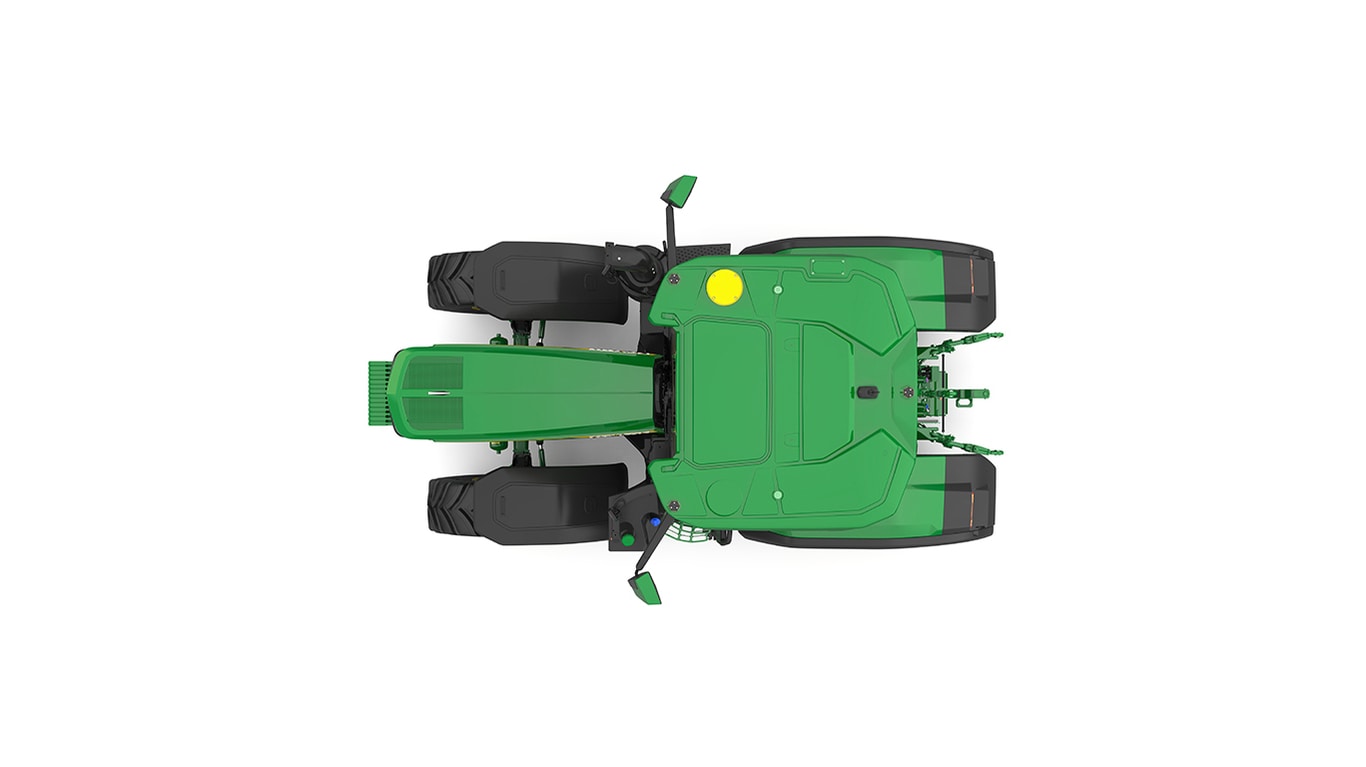

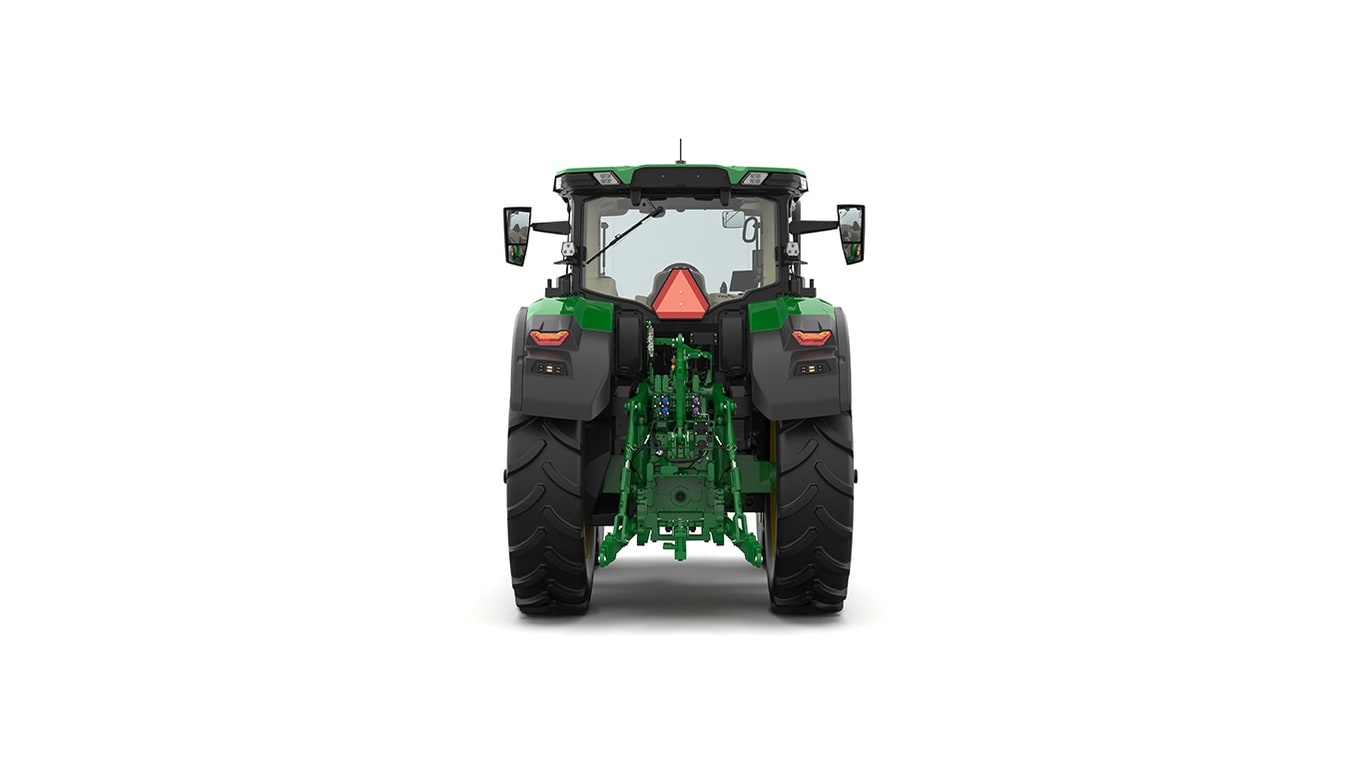

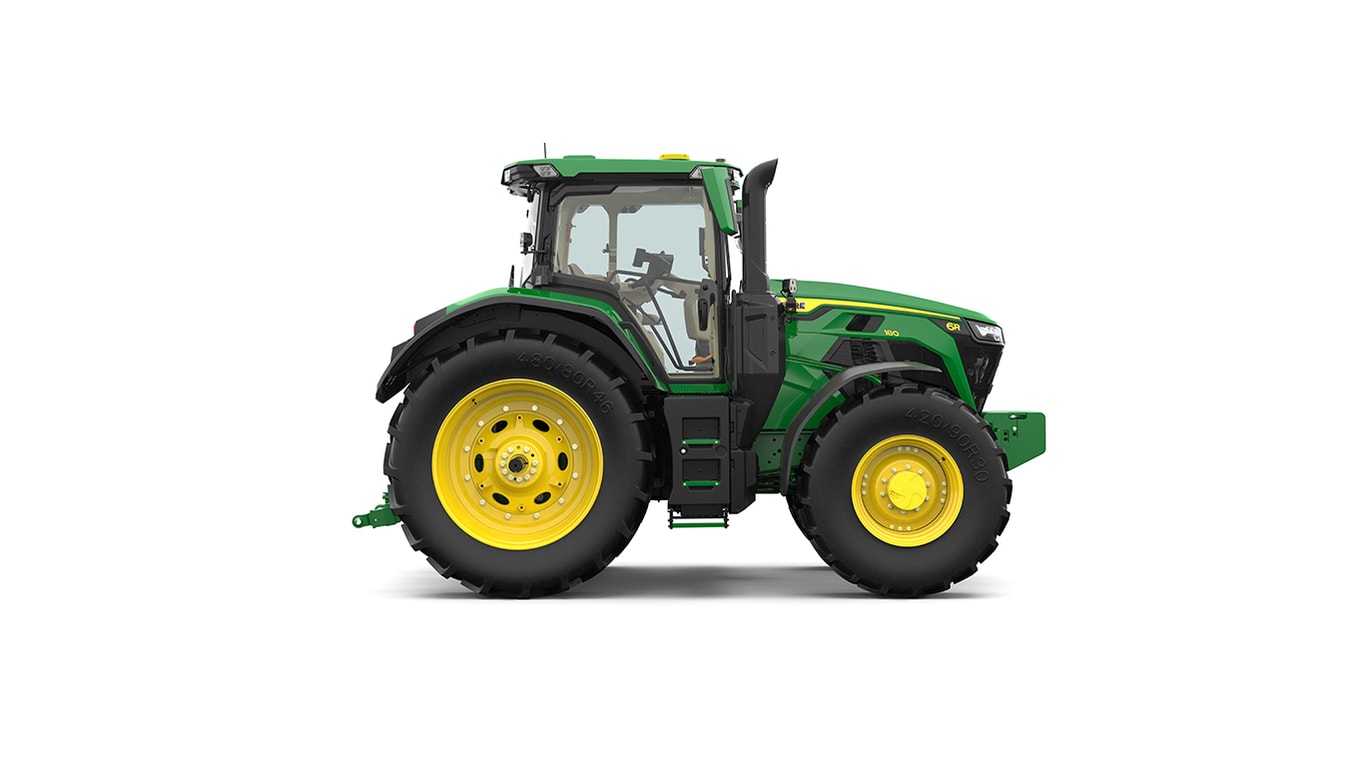

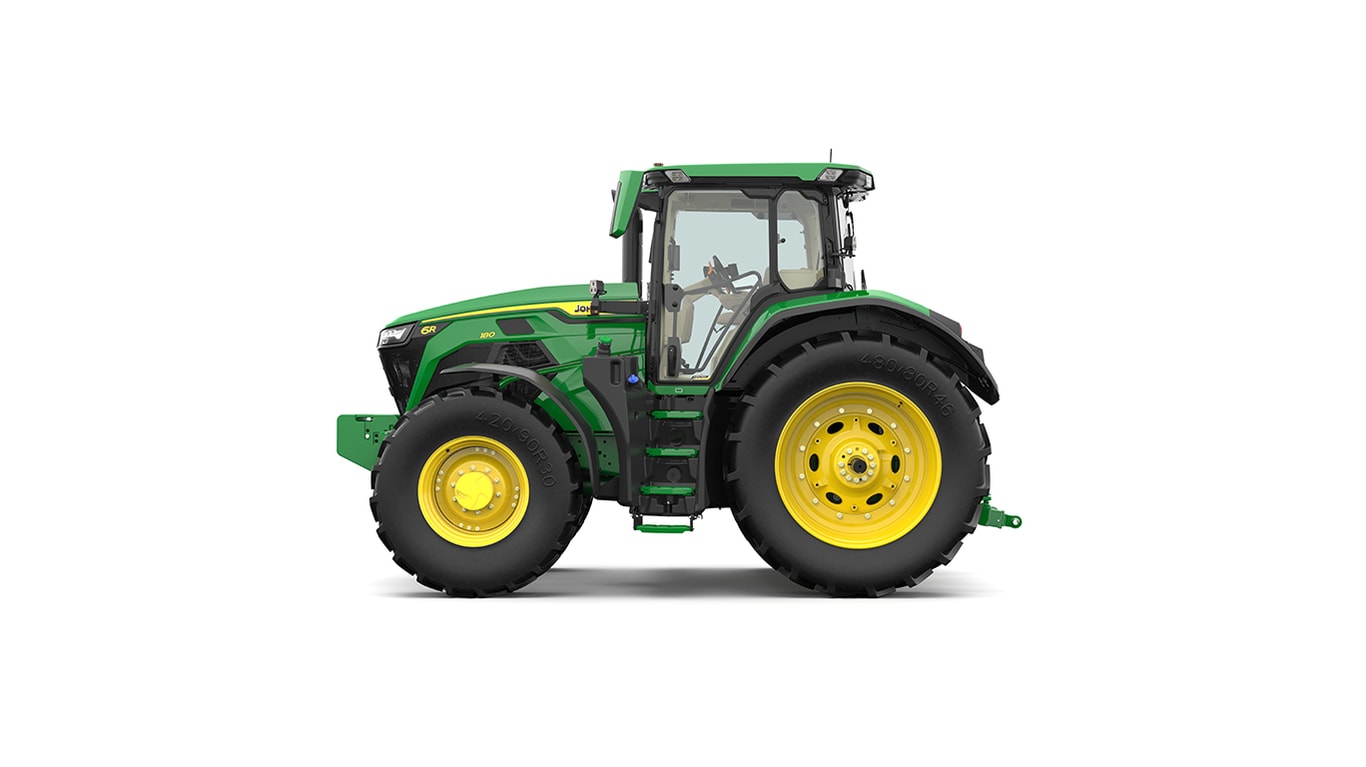

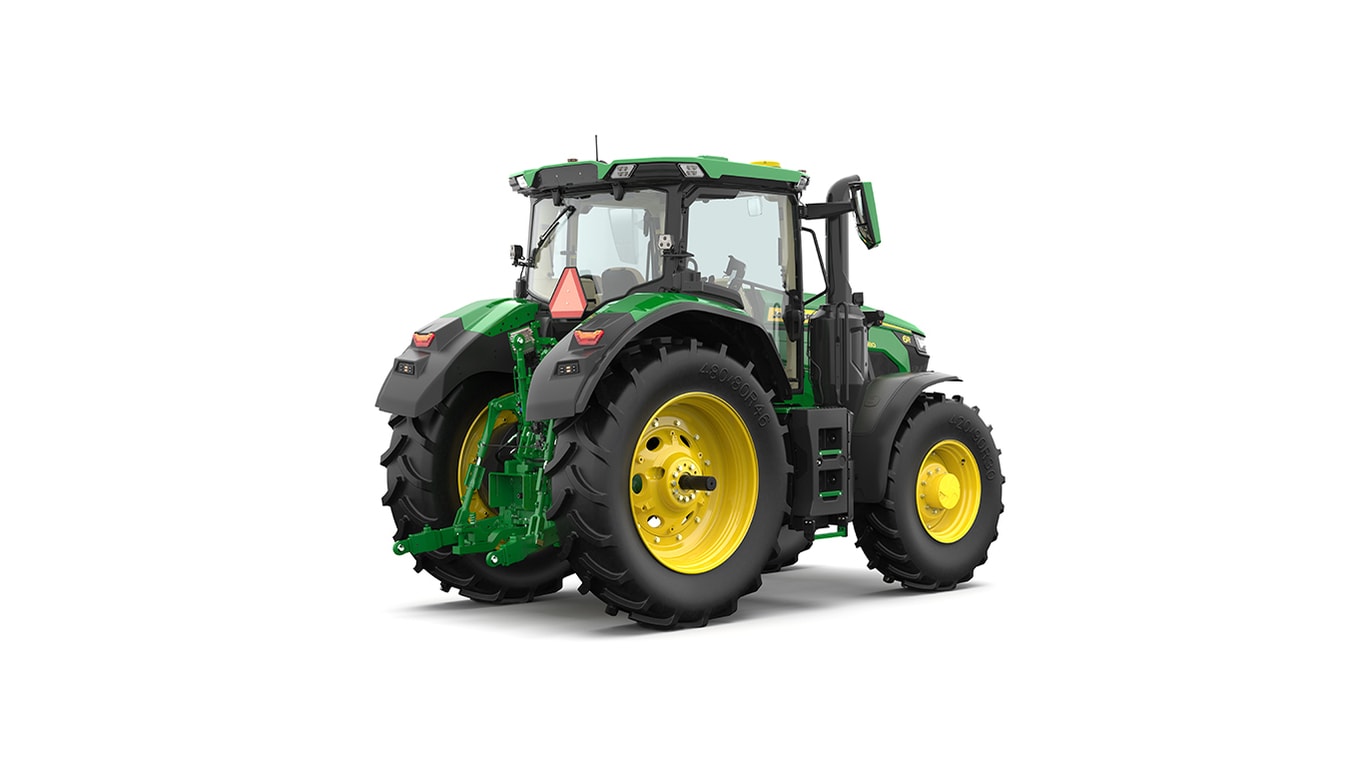

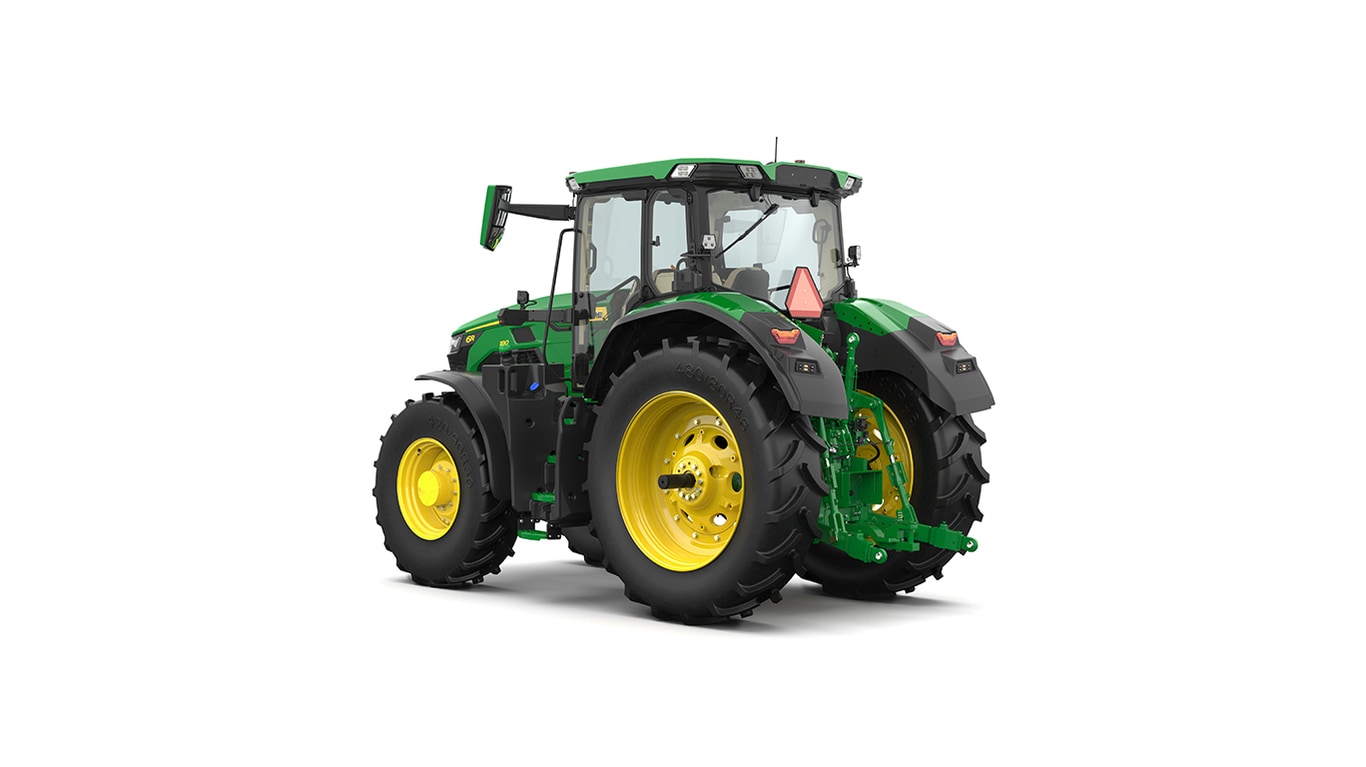

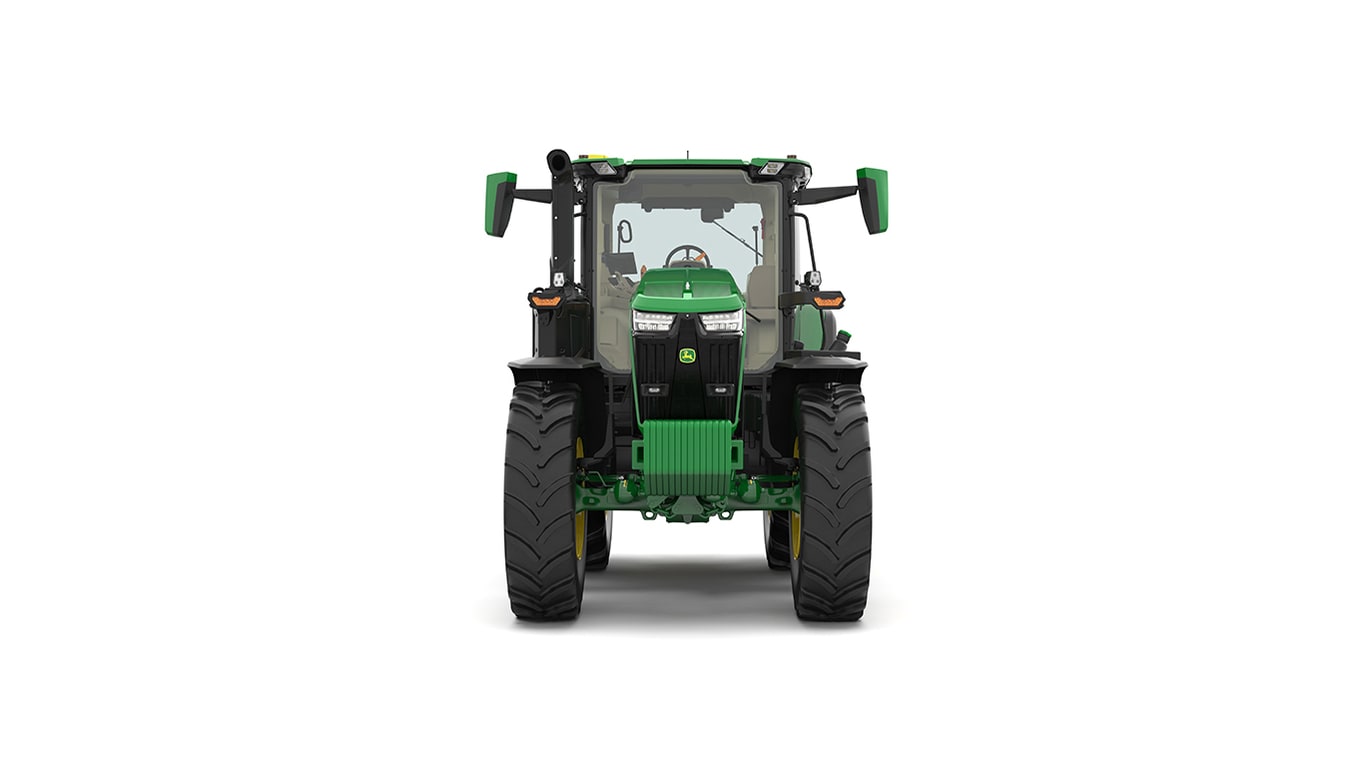

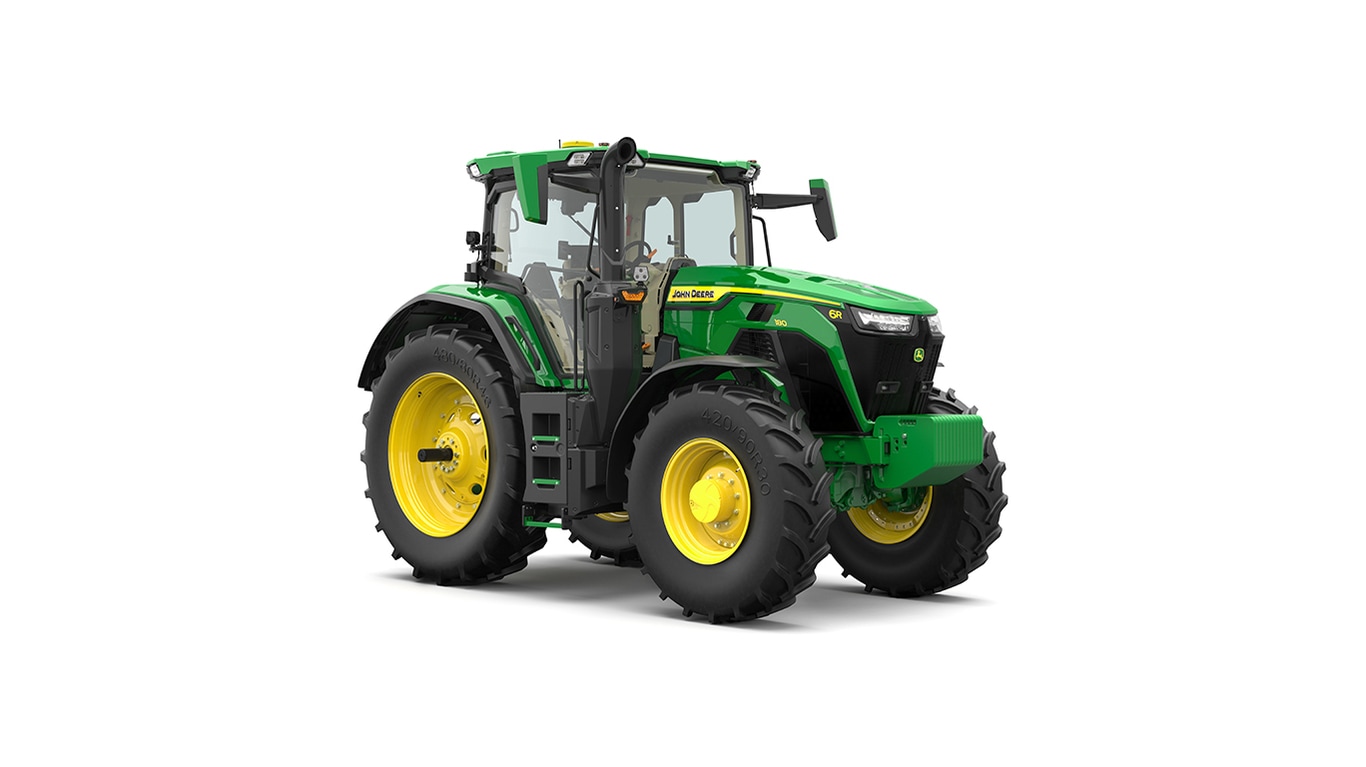

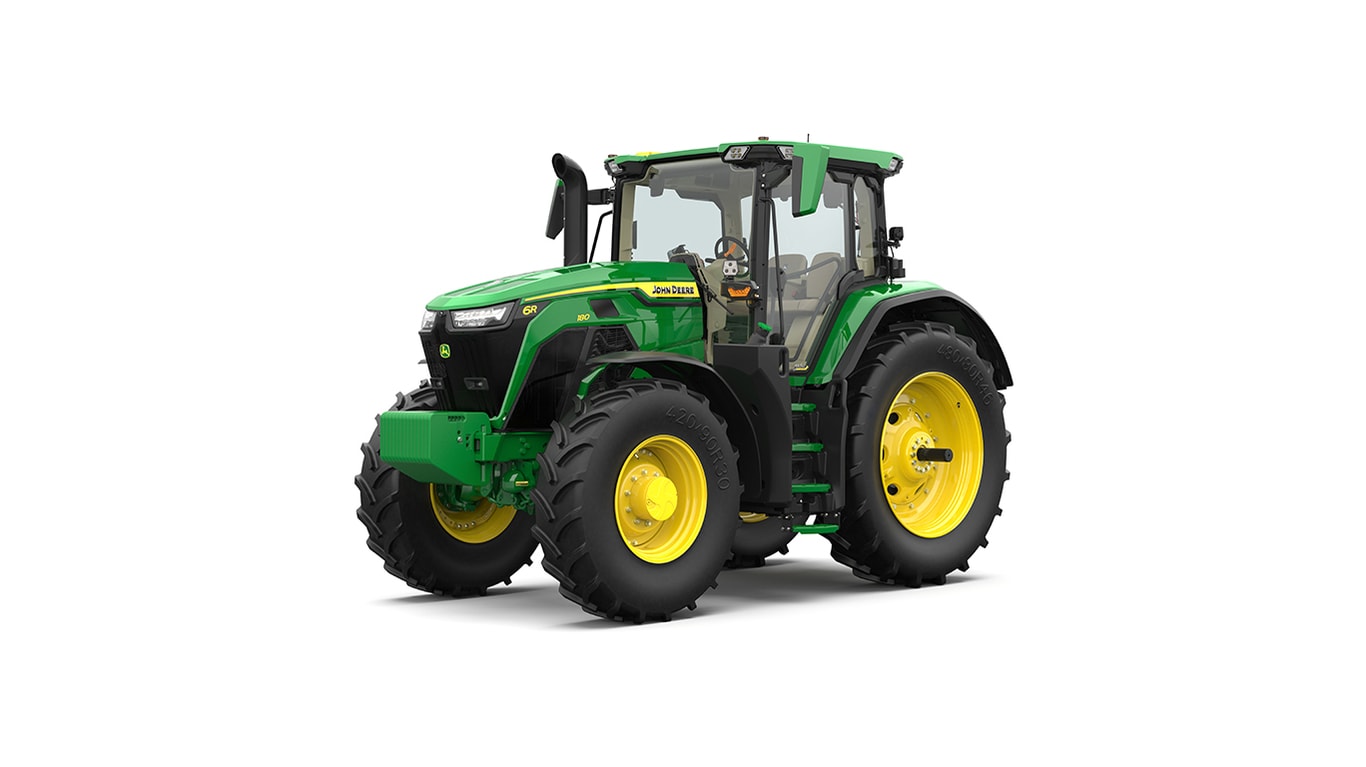

Tractor - 6R 180 Back
Model Number :
6R 180
Learn about the 6R 180, a transport tractor with high power density for quick acceleration.
- Engine HP: 198 Max (148 kW)/180 rated (134 kW) with up to 40 additional HP (30 kW) (IPM)
- e19™ PowerShift™ or IVT™ transmission for delivering efficient power to the ground
- Ergonomic design and optimized visibility
- Enhanced front axle and cab suspension for responsive road handling and comfort during transport
Key Specs
Engine Make
John Deere
Engine Model
John Deere PowerTech PVS
Engine Family
VJDXL06.8309
Displacement (L)
6.8
Displacement (cu in.)
418
Rated Engine Power (hp)
178
Rated Engine Power (kw)
132
Rated Engine Power (PS)
180
Transmission Type
Standard: John Deere AutoPowr™/IVT™ 40 km/h
Optional: John Deere AutoPowr™/IVT™ 50 km/h
John Deere e19™ PowerShift 40 km/h & 50 km/h
Optional: John Deere AutoPowr™/IVT™ 50 km/h
John Deere e19™ PowerShift 40 km/h & 50 km/h
Rear Hitch Category (SAE Designation)
Category 3/3N
Pump Rated Output
Standard: 155 L/min 41 gpm Optional: 210 L/min 55.5 gpm
Base Machine Weight (lb)
19621
Base Machine Weight (kg)
8900
Machine Configuration
Wheel or Track Configuration
Wheel
Drive Type
MFWD
Engine
Engine Make
John Deere
Engine Model
John Deere PowerTech PVS
Engine Family
VJDXL06.8309
Emissions Certifications
Final Tier 4
Displacement (L)
6.8
Displacement (cu in.)
418
Aspiration
Turbocharged, variable geometry turbocharger with air-to-air aftercooling and cooled exhaust gas recirculation
Number of Cylinders
Six
Cylinder Liners
Wet-sleeve
Aftertreatment Type
Cooled exhaust gas recirculation (EGR)
Diesel Particle Filter (DPF) with Diesel Oxidation Catalyst (DOC) and Selective Catalytic Reduction (SCR) using DEF
Diesel Particle Filter (DPF) with Diesel Oxidation Catalyst (DOC) and Selective Catalytic Reduction (SCR) using DEF
Intelligent Power Management (IPM)
40
Rated Engine Speed (rpm)
2,100
Rated Engine Power (hp)
178
Rated Engine Power (kW)
132
Rated Engine Power (PS)
180
Rated Engine Power with IPM (hp)
217
Rated Engine Power with IPM (kw)
162
Rated Engine Power with IPM (PS)
220
Maximum Engine Speed (rpm)
1,900
Maximum Engine Power (hp)
195
Maximum Engine Power (kW)
146
Maximum Engine Power (PS)
198
Maximum Engine Power with IPM (hp)
225
Maximum Engine Power with IPM (kW)
168
Maximum Engine Power with IPM (PS)
229
Maximum Engine Torque
843 Nm
622 lb-ft
622 lb-ft
Constant Power Range
1,500 - 2,100 rpm
Power Bulge (%)
10
Bore and Stroke (in.)
4.2 x 5.0
Bore and Stroke (mm)
106.5 x 127
Compression Ratio
16.7:1
Lubrication
Pressure lubrication
Cooling System Type
Liquid
Fuel Type
Ultra-low sulfur diesel
Air Cleaner Type
PowerCore ® G2 Air Filter with pre-cleaning
Torque Rise (%)
40
Transmission
Transmission Type
Standard: John Deere AutoPowr™/IVT™ 40 km/h
Optional: John Deere AutoPowr™/IVT™ 50 km/h
John Deere e19™ PowerShift 40 km/h & 50 km/h
Optional: John Deere AutoPowr™/IVT™ 50 km/h
John Deere e19™ PowerShift 40 km/h & 50 km/h
Maximum Speed Forward
50 km/h
31 mph
31 mph
Minimum Speed Forward
0.03 km/h
0.02 mph
0.02 mph
Reverser
Left-hand electrical reverser
Cruise Control
Yes
Rear Power Take-Off (PTO)
Rated PTO Power (hp)
140
Rated PTO Power (kW)
104
Rated PTO Power (PS)
142
Economy PTO Speeds
540 rpm / 1,000 rpm
Engine rpm at Rated PTO Speeds (540/540E/1.000)
1950/1721/1950
Engagement Method
Electrohydraulic switch
PTO Clutch
Multi-disk
Front PTO
Front Hitch
Front Hitch Category
Category 3N
Lift Capacity Through Full Lift Range at Coupling Points (lb)
7,275
Lift Capacity Through Full Lift Range at Coupling Points (kg)
3,300
Number of Front Selective Control Valves (SCVs)
Two
Electric Power
ISOBUS Connector
Rear Hitch
Rear Hitch Category (SAE Designation)
Category 3/3N
Lift Capacity Through Full Lift Range at 610-mm Behind Hitch Point
5,150 kg
11,350 lb
11,350 lb
Sensing Type
Electrohydraulic sensing
Draft Control Sensing
Yes
Drawbar
Drawbar Category
Cat 3
Maximum Vertical Load
3,000 kg
6,612 lb
6,612 lb
Hydraulics
Hydraulic System Type
Closed-center, pressure/flow compensated system
Pump Rated Output
Standard: 155 L/min 41 gpm
Optional: 210 L/min 55.5 gpm
Optional: 210 L/min 55.5 gpm
Maximum Operating Pressure (psi)
2973
Maximum Operating Pressure (bar)
205
Number of Rear Selective Control Valves (SCVs)
Six
SCV Control
Electrohydraulic
Auxiliary Hydraulic Features
Yes
Front Axle
Front Axle Type
Triple Link Suspension (TLS Pro™) MFWD axle, Hydro-pneumatic, permanently active, triple link, self levelling suspension
Front Axle Differential Lock
Yes
Rear Axle
Rear Axle Type
Inboard planetary three pinion
Rear Differential Lock
Yes
Differential Control
Yes
Final Drive
Three planetary gear reduction
Steering &Brakes
Steering Type
Dynamic Load Sensing
Reactive Command Steering (RCS)
Reactive Command Steering (RCS)
Primary Brakes
Hydraulic actuation of rear axle brake and front axle brake (optional)
Secondary Brake
electo hydraulic actuated, integrated into service brake
Trailer Brakes
Optional: Air and/or hydraulic
Parking Brake
Intergrated parking brake
Tires
Tracks
Electrical System
Battery Voltage (V)
12
Electrical System Voltage (V)
12
Battery Cold Cranking Amps (CCA)
1400 CCA (174Ah)
Alternator Capacity
250
Working Lights
Yes
Driving Lights
Yes
Operator Station
Seat Suspension
Mechanic / Pneumatic
Degree of Seat Swivel, Left Hand (degree (angle))
7.5
Degree of Seat Swivel, Right Hand (degree (angle))
30
Cab Suspension
Yes
Instructional Seat
Yes
Primary Display
Cornerpost Display
Radio
Standard
Inner Cab Volume (cu ft)
102.4
Inner Cab Volume (m³)
2.9
Cab Glass Area (sq ft)
63.5
Cab Glass Area (m²)
5.9
Technology Integration
Guidance
SF-RTK
Secondary Display
10,1 / 12.8 inch Command Center Display
Receiver
Intergrated StarFire™ 7500
Connectivity
JDLink™ Modem
Remote Diagnostics
Yes
ISOBUS Ready
Yes
Capacities
Fuel Tank Capacity (gal.)
95.1
Fuel Tank Capacity (L)
360
Diesel Exhaust Fluid (DEF) Tank Capacity (gal.)
5.5
Diesel Exhaust Fluid (DEF) Tank Capacity (L)
21
Cooling System Capacity (gal.)
7.4
Cooling System Capacity (L)
28
Transmission - Hydraulic System (gal)
20.6
Transmission - Hydraulic System (L)
78
Crankcase Oil Volume (gal)
6.2
Crankcase Oil Volume (L)
23.5
Dimensions & Weights
Wheelbase (in.)
110.2
Wheelbase (mm)
2,800
Base Machine Weight (lb)
19,621
Base Machine Weight (kg)
8,900
Overall Height (in.)
127.8
Overall Height (mm)
3,245
Transport Height (in.)
127.8
Transport Height (mm)
3,245
Overall Width (in.)
100.4
Overall Width (mm)
2,550
Overall Length (in.)
198.8
Overall Length (mm)
5,050
Maximum Permissible Weight (lb)
29,762
Maximum Permissible Weight (kg)
12,500
Additional Information
Country of Manufacture
Germany
Date Collected
8-Jun-26
