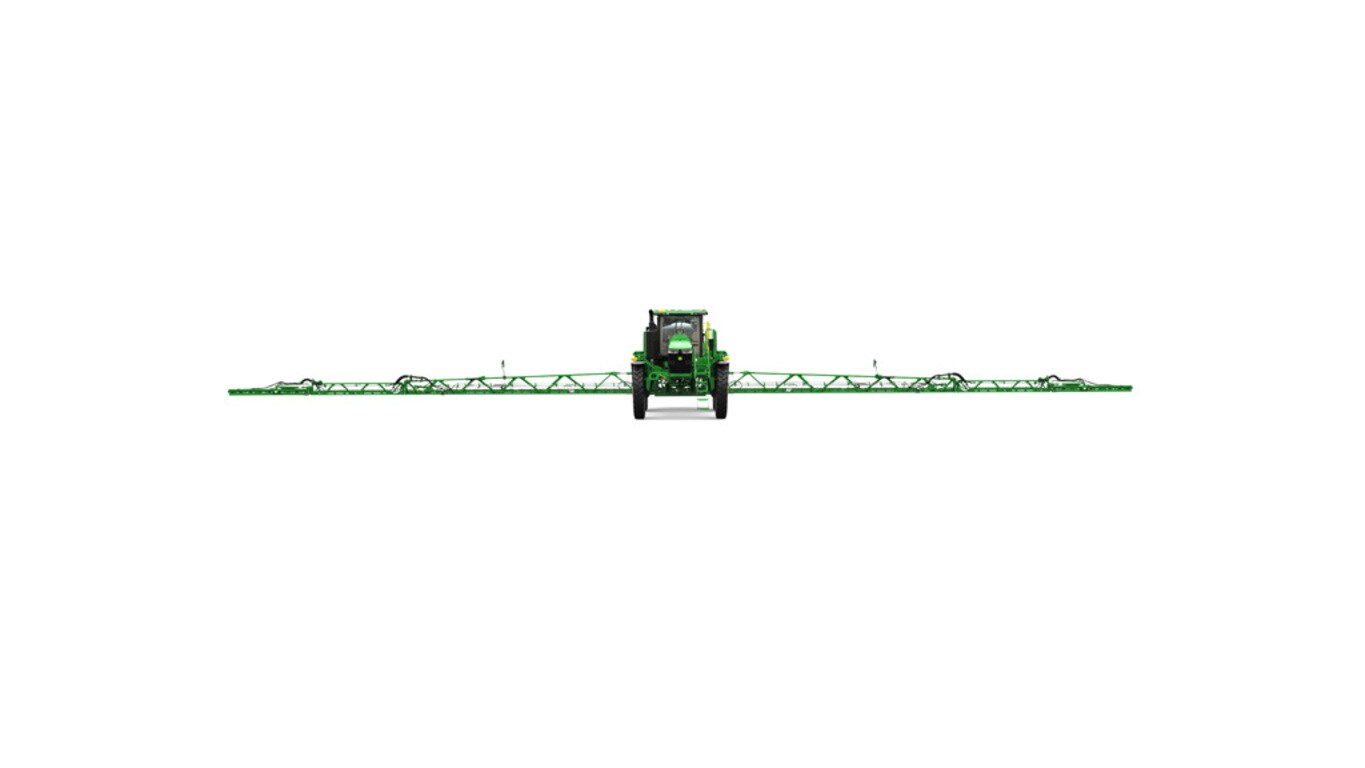

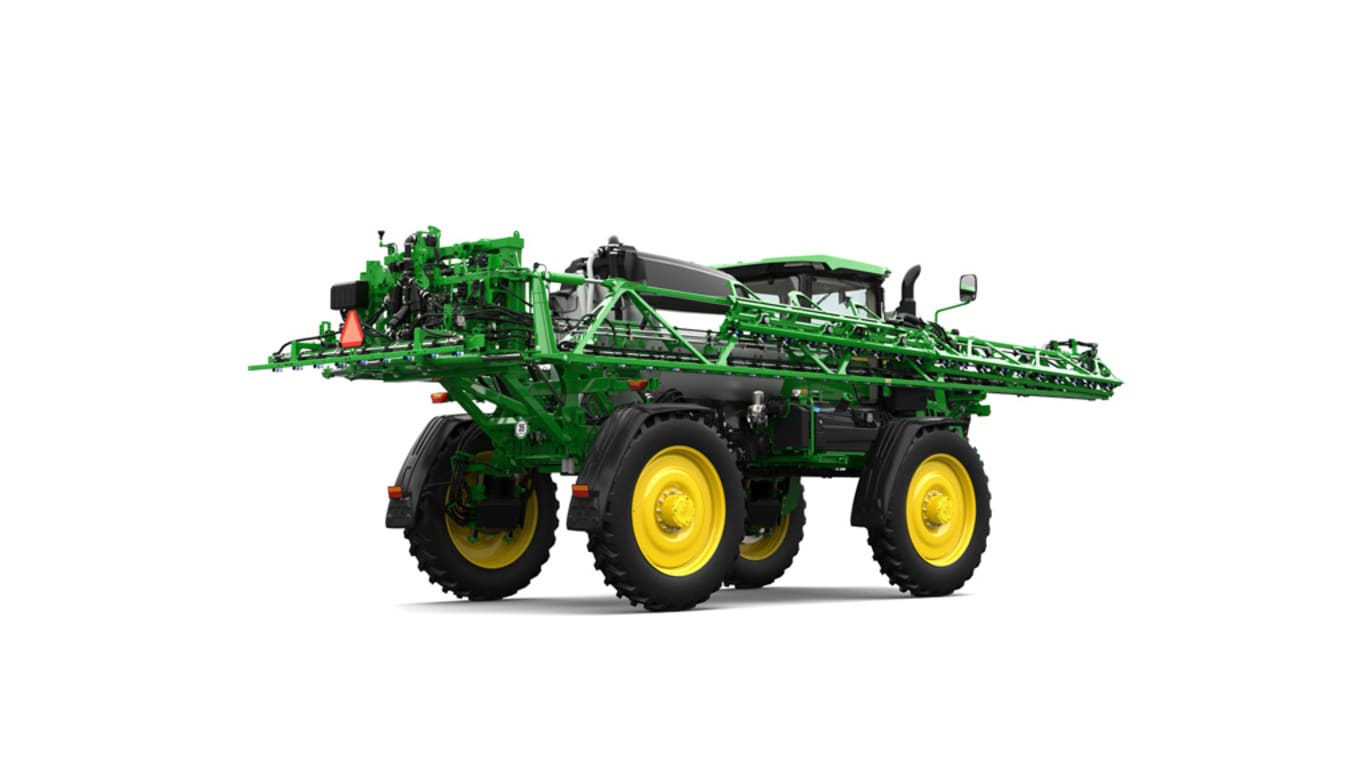

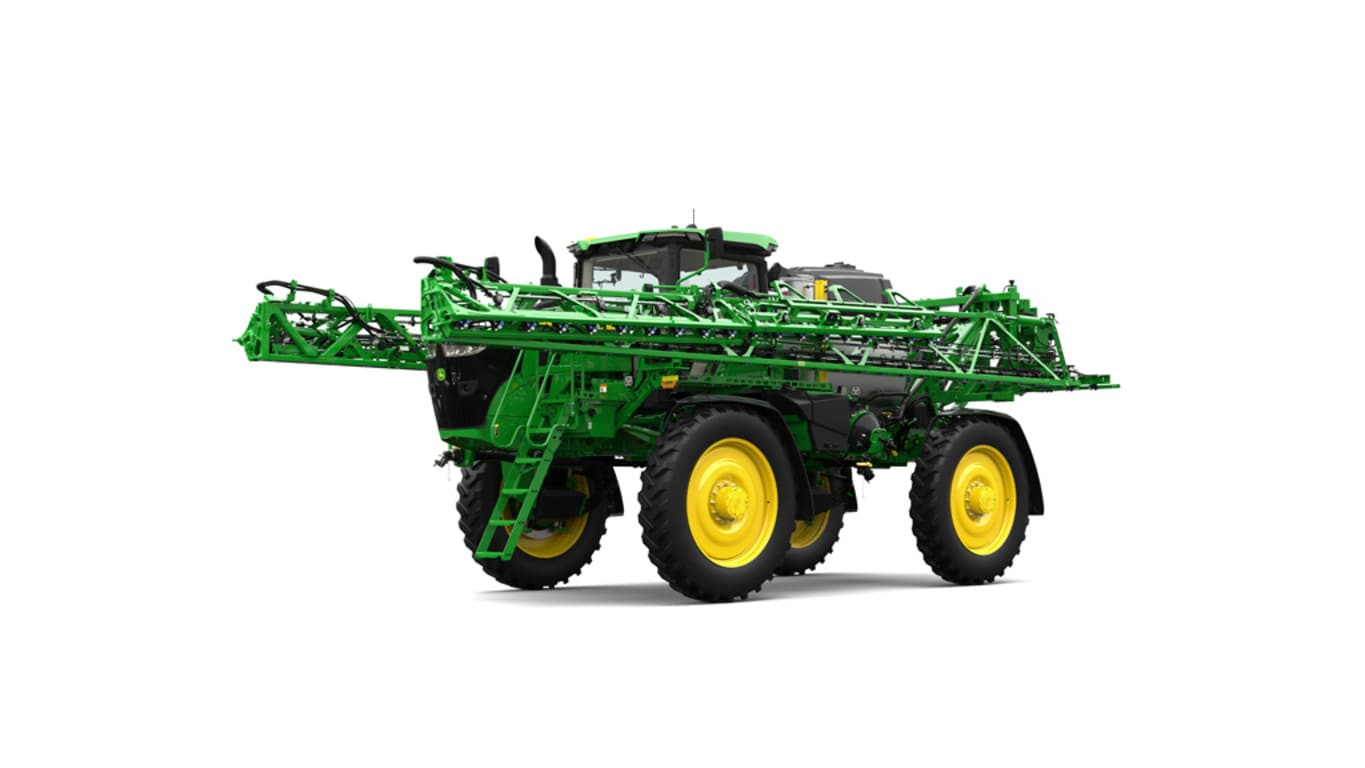

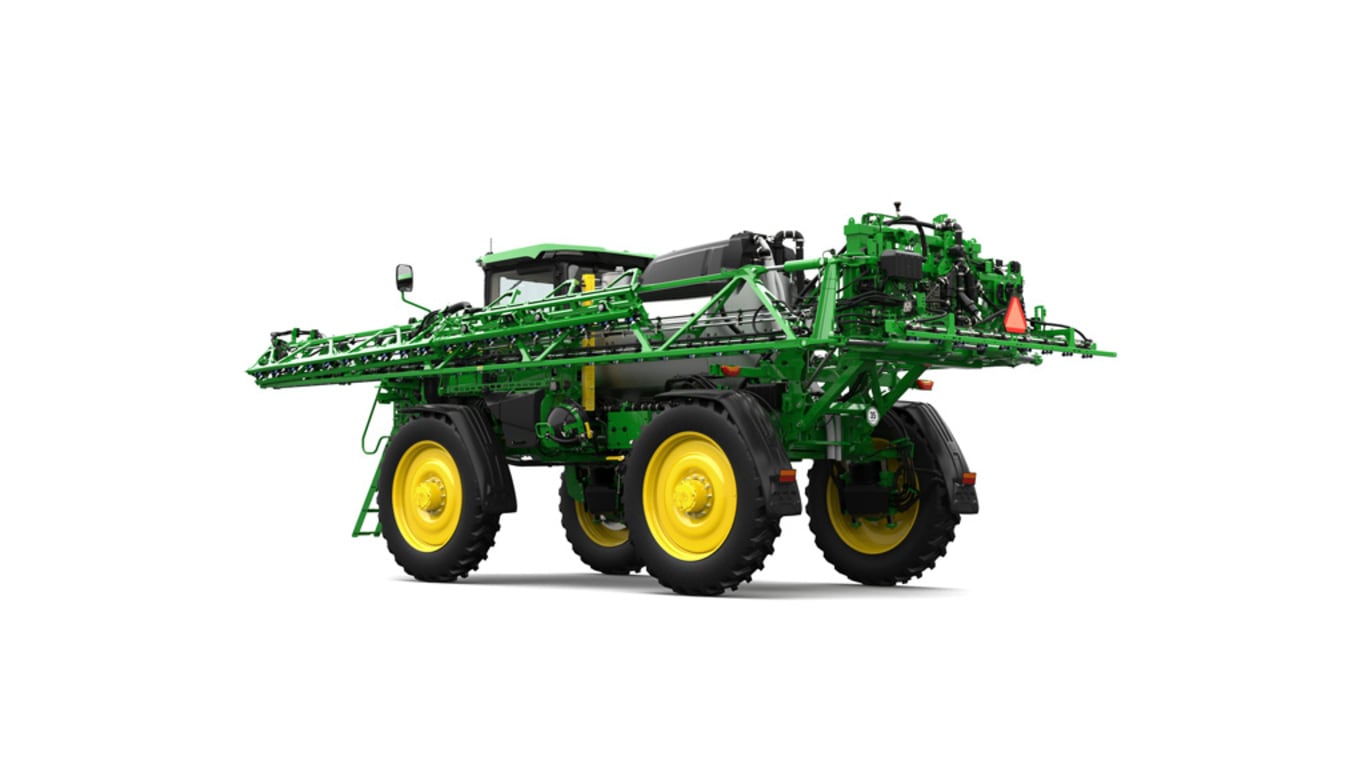

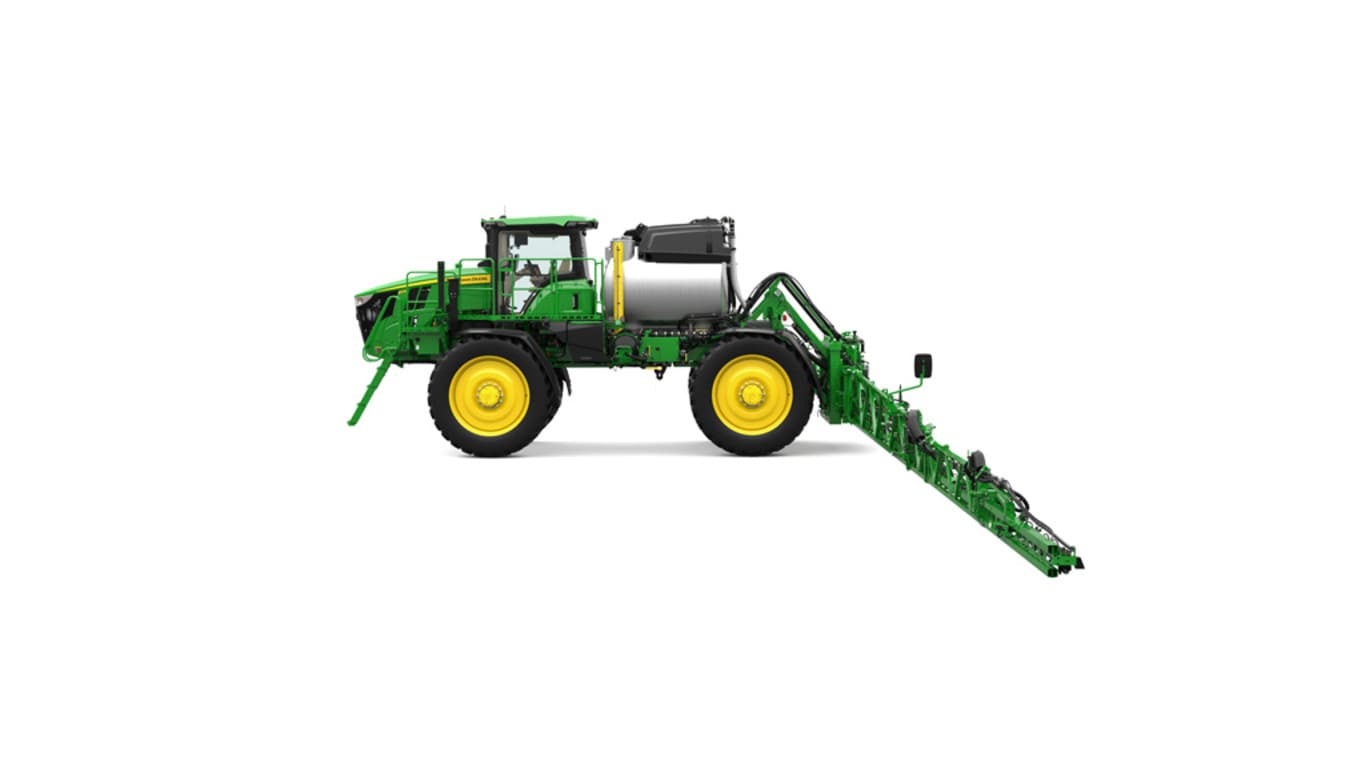

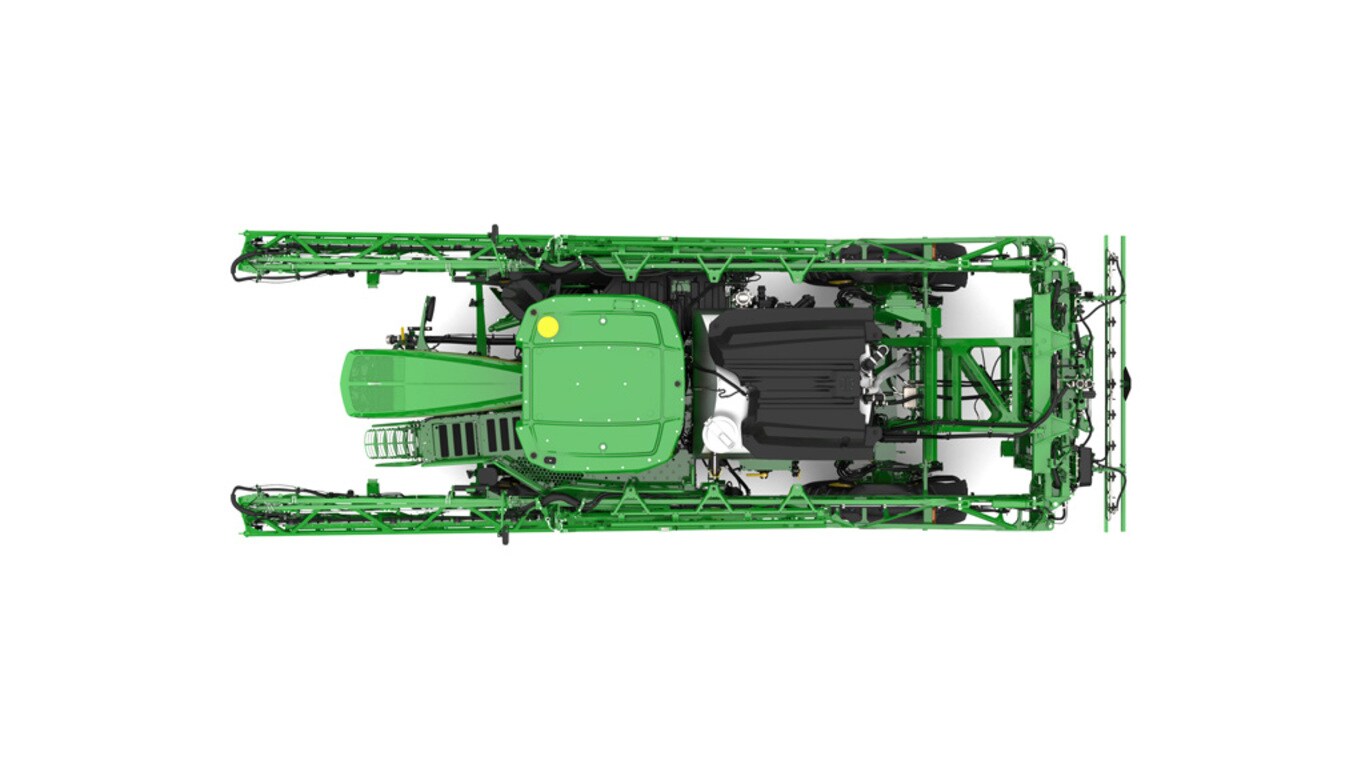

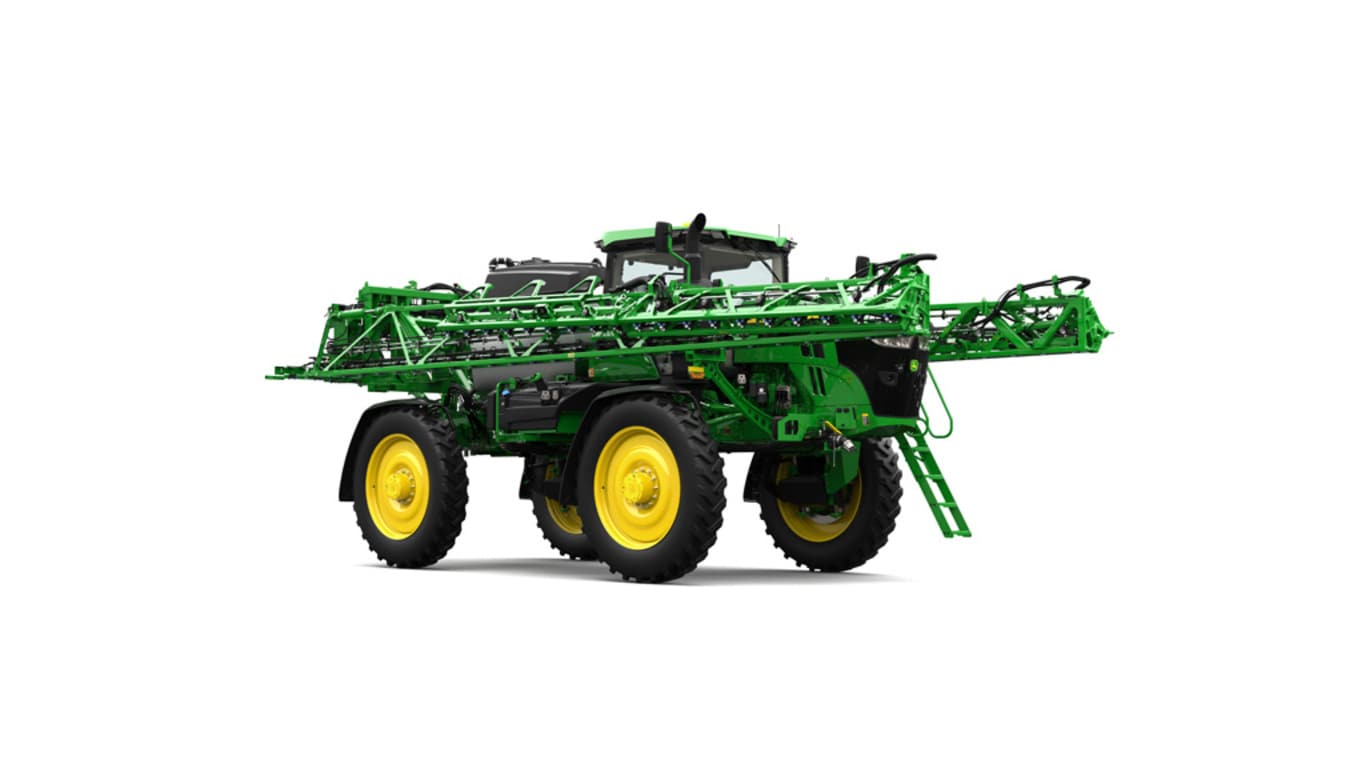

Sprayer - 612R Back

Model Number :
612R
Completely redesigned from the ground up with the latest advances in technology, the smartest cab in its class, higher application rates and smooth-running comfort, the 612R Sprayer can take your productivity to whole new levels.
  • 1,200-gallon (4,542 L) tank
  • Up to 132-foot (40.23 m) boom
  • 355 hp, 9.0 L engine
  • 35 mph (56.3 km/h) transport speed
Request Information
Spray, save, and protect yield with See & Spray™ systems
See & Spray Ultimate spraying in season See & Spray Ultimate spraying in season
See & Spray Select spraying fallow ground See & Spray Select spraying fallow ground
See & Spray Premium spraying in season See & Spray Premium spraying in season

When margins are tight and application windows are narrow, every dollar and every droplet need to work as hard as they can. John Deere See & Spray products bring resource-saving precision to the field:

  • See & Spray Select: Covers fallow fields using advanced camera and nozzle-control technology to spray only emerged weeds. It can also apply traditional broadcast application.
  • See & Spray Premium: For in-season application on corn, cotton, or soybeans in 76.2-cm (30-in.) or greater rows, or fallow ground using machine learning to identify weed from crop. It can also apply traditional broadcast application.

  • See & Spray Ultimate: For in-season application on corn or cotton in 76.2-cm (30-in.) or greater rows; soybeans in 38.1-cm (15-in.) or greater rows; or fallow ground using machine learning to identify weed from crop. Also includes a dual product solution system that allows two separate tank mixes to be utilized, better combating herbicide resistance and time inefficiency with two passes in one. It can also apply traditional broadcast application.





See & Spray Select

See & Spray Premium

See & Spray Ultimate

Fallow use



NOTE: Ultimate can see weeds approximately 0.635 cm (¼ in.) in diameter by 0.635 cm (¼ in.) in height. Select can see 0.9 cm (0.35 in.) in diameter by 1.5 cm (0.6 in.) in height.

Yes

Yes

Yes

In-season use



NOTE: If the crop canopy covers the row, then cameras cannot see weeds. The system can see weeds that are approximately 0.635 cm (¼ in.) in diameter by 0.635 cm (¼ in.) in height.

No

Yes

Yes

Targeted spray plus broadcast

Yes

Yes

Yes

Dual product solution system/split tank



NOTE: Can combine tanks to use at full capacity.

No

No

Yes

Night spray capable

Yes (model year 2023 and newer)

No

No

Speeds up to 19.3 km/h (12 mph)



NOTE: While using targeted spray.

Yes

Yes

Yes

Speeds up to 24.1 km/h (15 mph)



NOTE: While using targeted spray.

Yes

No

Yes

Technology evolution

John Deere has focused on taking farmers’ application from field level to plant level over the years. From field to broadcast, section control to ExactApply™ individual nozzle control, and now the next step – to artificial intelligence and machine learning. All See & Spray offerings work in conjunction with ExactApply nozzle control. They use a combination of cameras and processors to detect weeds before activating only the nozzles necessary to apply a burst of herbicide to the weed, achieving a hit rate comparable to traditional broadcast spray.

Data insights

How do you know See & Spray is doing its job? With the monitoring capabilities of John Deere Operations Center™ application and the Generation 4 4600 CommandCenter™ Display, you can track job quality and savings during and after application. These technology tools also offer weed pressure mapping, providing insights to make even better field management decisions. Weed pressure mapping only occurs when See & Spray is active during an operation.

Sustainability

Using less herbicide means using less water and creating less opportunity for drift, and that’s good for the land, water, and air that sustain us.



Additionally, See & Spray provides even more benefits for growers looking to make the best possible decisions about weed control.

See & Spray Ultimate benefits
  • Improve weed control – Combat herbicide resistance with a dual-product solution system that uses two independent tank mixes in one pass, avoiding antagonism in more aggressive tank mixes.
  • Reduce solution use – Reduce the applied volume of herbicide by more than two-thirds by avoiding inefficient traditional broadcast application in corn, cotton, and soybeans.*
  • Gain cost efficiency – More than two-thirds spray volume reduction means significantly lower herbicide costs, fewer tendering stops, and more acres covered in a day.

NOTE: Results based on internal John Deere strip trials in corn, soybeans, and cotton in Iowa, Mississippi, Texas, and Illinois in typical growing conditions with carrying weed size, crop canopy, and field conditions using targeted spray of non-residual herbicide only and using current software/algorithm at time of trials. Results will vary based on crop and weed pressure.

See & Spray Premium benefits
  • Reduce solution use – Reduce the applied volume of herbicide by up to two-thirds by avoiding inefficient traditional broadcast application in corn, cotton, and soybeans.
  • Gain cost efficiency – With up to two-thirds spray volume reduction, this means significantly lower herbicide costs, fewer tendering stops, and more acres covered in a day.
  • Sustainability and stewardship – See & Spray Technology allows customers to spray only the weeds, reducing the amount of chemical applied.
  • Improve weed control – You may save enough to justify applying a different chemistry while improving your ability to manage herbicide-resistant weeds. Research has shown that weeds sprayed with complex tank mixes and more than two modes of action are 83 times less likely to develop herbicide resistance.
See & Spray Select benefits
  • Reduce solution use – By avoiding inefficient traditional broadcast applications and spraying only when weeds are detected, you can reduce the applied volume of herbicide by 77 percent.**
  • Gain cost efficiency – Significantly reduce herbicide costs, make fewer tendering stops, and cover more acres in a day.
  • Improve weed control – You may save enough to justify applying a different chemistry while improving your ability to manage herbicide-resistant weeds. Research has shown that weeds sprayed with complex tank mixes and more than two modes of action are 83 times less likely to develop herbicide resistance.

**NOTE: In tests over 75,000 acres of fallow ground, typical weed pressure of 3,000 weeds per acre, and with spray length settings of small medium, customers experienced an average herbicide savings of 77 percent compared to a traditional broadcast sprayer.

Cover more acres more accurately and more consistently with ExactApply™ system
Turn compensation mode Turn compensation mode
Individual nozzle control mode Individual nozzle control mode

Fertilizers and crop protection products are too expensive to waste, and seed is too valuable to risk over- or under-treating. To help make sure your solution is getting to the crop at exactly the right rate and droplet size across a wider range of speeds, look to ExactApply nozzle control system.



The heart of the ExactApply system is a six-nozzle turret with multiple modes of operation to help maintain target rate and pressure. From the cab, operators can choose:

  • 15-Hz pulse-width modulation (PWM) pulses one solenoid for more consistent pressure and droplet size over a wider range of ground speeds and application rates.
  • 30-Hz PWM pulses both solenoids at 15 Hz for more thorough coverage during high-volume applications, like liquid fertilizer.
  • AutoSelect A/B mode automatically switches between two nozzles to maintain a constant spray pressure while you’re spraying conventionally.
  • Turn compensation mode decreases the spray rate on the inside of a turn while increasing the rate on the outside, ensuring consistent application across the entire width of the boom.
  • Individual nozzle control minimizes overlap by controlling spray application at the individual nozzle level, not in 2.4- to 3.35-m (8- to 11-ft) section widths.



By maintaining a target rate and pressure over a wider range of speeds, ExactApply lets you cover up to 20 more acres per hour (based on a 3.2-km/h [2-mph] increase in operating speed) with more consistent spray deposition, saving you input costs and preserving more of your crop’s yield potential.



ExactApply is available as a factory-installed option, as well as through Precision Upgrades and aftermarket attachments. Precision Upgrades for ExactApply are available for 400, 600, and 4 Series Sprayer models. ExactApply aftermarket attachment kits are available for 4 Series Sprayer models.

Save product with pressure recirculation and product reclaim
Boom plumbing Boom plumbing
Pressure recirculation plumbing Pressure recirculation plumbing

Quality of application is critical. Avoid settling in the plumbing by keeping solution in motion with pressure recirculation, coupled with product reclaim and boom air purge. These features save precious time, product, and expense when rinsing and priming the boom while switching solutions.



Cost savings

  • Pressure recirculation primes the boom versus traditional boom prime where liquid tends to be sprayed out, saving 113.6 L (30 gal.) each time. If an operator does this process 10 times a day, coupled with approximately 85.2 L (22.5 gal.) of solution savings with product reclaim one to two times per day, these two features together could save up to $600* a day.
    • *NOTE: Assumes 113.6 L (30 gal.) of residual product in the system at 93.5 L/ha (10 gpa) and $20 per acre 10 times per day. Adjust the calculation to suite your operation.
  • Reclaim expensive crop protection solutions between applications or required service in the field with product reclaim.
  • Potentially reduce crop damage from residual chemical buildup.



Performance:

  • Experience uniform distribution of product across the boom.
  • Reduce nozzle clogging with increased agitation of product in solution system.


Keep solution in suspension in the boom and system while the machine is on and not spraying with pressure recirculation. Recirculation during rinsing removes any chemical that settled out of the suspension while spraying, resulting in higher rinse water velocity in the spray pipe. Rinse water can be recirculated multiple times to further clean spray pipes and reduce cleanout times. Boom pressure recirculation mixes the solution and primes the boom before spraying to obtain a homogenous chemical mixture throughout the solution system and up to the nozzle tip. This recirculation improves spray quality and reduces time at the start of spraying.



Product reclaim transfers chemical out of the boom plumbing into solution tanks to improve boom rinse functions, also reducing exposure when servicing nozzle bodies. Additionally, save on chemical cost and enable easier rinse water collection between rinses when operators are not spraying out of the boom in the field.



NOTE: Pressure recirculation and product reclaim kits are also available to order as aftermarket upgrade kits through Parts and as Complete Goods through precision upgrade. Precision upgrades offers kits for 400, 600, and 4 Series Sprayer while Parts offers kits for R4030-R4060 Sprayers.

Greater fuel efficiency and lower cab noise with CommandDrive™ powertrain
Experience fuel saving and noise reduction with CommandDrive Experience fuel saving and noise reduction with CommandDrive

With the CommandDrive powertrain, save fuel, reduce cab noise, get improved traction in challenging conditions, and cover more acres per day. CommandDrive offers the operator an Auto Mode that automatically directs the engine to run at the lowest rpm necessary to maintain ground speed and hydraulic functions and to meet the demands of the solution system.



CommandDrive also allows operators to adjust the aggressiveness of acceleration and deceleration and features an Auto Idle system that reduces engine speed to 900 rpm when the machine is in park. It all adds up to:

  • 20 percent or greater fuel savings
  • More acres sprayed per day, thanks to fewer fuel stops and improved traction in rough conditions
  • Reduced in-cab noise levels by 3to 5 decibels
  • Fewer demands on the operator



CommandDrive is base equipment on all 408R, 410R, 412R, 612R, and 616R Sprayers, as well as 400R and 600R Dry Spinner Spreaders.

Bumps, rolls, and hills: BoomTrac™ Pro 2 system can handle it all
Boom sensor Boom sensor
Inertia measurement unit (IMU) sensor on rear of machine Inertia measurement unit (IMU) sensor on rear of machine
#

For the highest level of spray accuracy with less drift and reduced risk of boom damage, look to the BoomTrac Pro 2 automatic boom-height control system.



Thanks to the addition of an inertia-monitoring sensor that helps correct for chassis roll, BoomTrac Pro 2 offers up to 22 percent greater spray accuracy (composite score over a variety of terrains) compared to the previous BoomTrac Pro system, and a five time increase in the amount of time the boom maintains its target height, which is a real plus in rough or hilly conditions. Along with the improved accuracy and reduced drift, operators will appreciate having one less function to perform and one less thing to worry about.



NOTE: BoomTrac Pro 2 is required on all carbon fiber booms.

Simple turnkey experience with the StarFire™ 7000 Integrated Receiver
StarFire 7000 Integrated Receiver on John Deere 400 and 600 Series Sprayers and 800R Floaters StarFire 7000 Integrated Receiver on John Deere 400 and 600 Series Sprayers and 800R Floaters

The StarFire 7000 Receiver is the latest addition to the suite of Precision Ag Technology from John Deere. The StarFire 7000 Receiver offers greater accuracy, faster pull-in times, and season-to-season repeatability. This means less hardware, faster times recovering from a shading event, and the confidence that your guidance lines and boundaries do not shift from year to year. The integrated design further enhances the value that you have come to expect from StarFire products.

Similar to the StarFire 6000 Integrated Receiver, the StarFire 7000 eliminates all setup, installation, and calibrations. There is no need to verify machine and receiver measurements, as this has been done precisely for you at the factory. You will spend 60 minutes less per receiver move each season, which gives you more time to focus on other parts of your operation.

With updated Ethernet connectivity, software updates are easier and faster. StarFire 7000 Integrated Receiver maintains the speed to update software in under 4 minutes while remaining in the cab. Over-the-air updates are 85 percent faster with the StarFire 7000 Integrated Receiver because of Ethernet connectivity.

Order codes

Code

Attachment

Description

188H



StarFire Ready, Less Receiver

188T



StarFire Universal Receiver with SF1

1890



StarFire Universal Receiver with 1 year SF-RTK License

189B



StarFire Universal Receiver with RTK Permanent License

Benefits to the StarFire 7000 with SF-RTK
  • 5-year repeatability
  • 10-minute pull-in time
  • 2.5-cm (1-in.) pass-to-pass accuracy
  • Drop-in replacement for StarFire 6000 Integrated Receivers

To learn more about the StarFire 7000, visit the StarFire 7000 page.

Keep operators fresh with Comfort and Convenience packages and Visibility packages
Model year 2022 and newer Ultimate lighting Model year 2022 and newer Ultimate lighting
Model year 2021 4 Series LED lighting Model year 2021 4 Series LED lighting

When you’re staring down a string of 2,000-acre days, your equipment isn’t all that needs to be operating at peak – your operators need to be at their best, too. That’s why John Deere put together a range of cab packages to give you just the right features to keep your operators comfortable and efficient.



For corner-office comfort that can help make short work of the longest days, take a look at the Ultimate Comfort and Convenience package. The heated, ventilated ActiveSeat™ II isolates the operator from up to 90 percent of vertical movement and comes in leather with massage functions. The Ultimate package also gives you a premium XM® ready sound system with subwoofer, a leather-wrapped steering wheel, a refrigerator, and more.



When the long days turn into long nights, you’ll be glad you ordered the Ultimate Visibility package. A full 360 degrees of powerful light-emitting diode (LED) cab lighting gives you a clear view all around the machine, while eight LED service lights illuminate critical service areas.

The following table gives a quick reference of what is contained in the Visibility packages.





Feature

Premium Visibility package

Ultimate Visibility package

Cab

Halogen work lights (cab roof)

---

---

LED work lights (cab roof)

Six

Six

LED beacons (cab roof)

Two

Two

LED convenience lights

Eight

Eight

Front sunshades

X

X

Right-side sunshades

X

X

Rear sunshades

X

X

Front wiper

X

X

Right-side wiper

X

X

Vehicle

Halogen work lights (vehicle)

---

---

Halogen hood work lights

---

---

Halogen high beam (hood)

---

---

Halogen low beam (hood)

Two

Two

LED high beam (hood)

Two

Two

LED work lights (vehicle)

Six

Six (two of these are higher, 4400-lumen output lights)

LED hood work lights

Four

Four

LED beacons

One rear

One rear

Boom LED lights

Two

Two

Boom halogen lights

---

---

Manually adjustable left-hand and right-hand boom mounted with bubble mirror

X

X

Manually adjustable right-hand cab

---

---

Electrically adjustable and heated right-hand cab

X

X

Manual underframe mirror

---

---

Electrically adjustable and heated underframe mirror

X

X

Additional camera ready

X

---

Left-hand and right-hand side view camera ready

---

---

Integrated backup camera

X

X



Ultimate Comfort and Convenience cab Ultimate Comfort and Convenience cab

In addition to the Visibility packages available, the following table gives a quick reference of what is contained in the Cab Comfort and Convenience packages.



  Select Comfort and Convenience package Ultimate Comfort and Convenience package
Cloth seat X ---
Leather seat with carpeted floor mat --- X
ActiveSeat™ II --- X
Heated and ventilated leather seat with massage functionality --- X
Mechanical fore/aft and lumbar support X ---
Electronic controls and pneumatic lumbar support --- X
Adjustable right-hand CommandARM™ controls with integrated CommandCenter™ touchscreen display X X
24-degree right-hand seat swivel and 8-degree left hand seat swivel X ---
24-degree right-hand seat swivel and 24-degree left-hand seat swivel --- X
AM/FM Aux and Bluetooth® wireless inputs plus two cab speakers X ---
16.5-cm (6.5-in.) touchscreen radio, XM ready, and 6.1 speaker system with subwoofer including AM/FM Aux with Bluetooth™ wireless inputs --- X
Automatic temperature controls with controls located on CommandARM X X
Footrests --- X
Business band ready X X
Refrigerator --- X
Four USB and one 12-V outlet X X
Right-hand accessory rail --- X
120-V outlet --- X
Leather-wrapped steering wheel --- X



Some of the features in the chart above are also available as attachments. There are also many options for mounting a variety of monitors, tablets, and phones.



*NOTE: Bluetooth where certification allows.



Bluetooth is a trademark of Bluetooth SIG, Inc. XM is a trademark of Sirius XM Radio, Inc.

John Deere Signature Edition: the ultimate in comfort, visibility, and technology

NOTE: Not available on sprayers ordered as dry box only.

John Deere Signature Edition badge John Deere Signature Edition badge

To make the most powerful John Deere options available in one cost-effective package, 408R through 616R Sprayer models can be ordered as John Deere Signature Edition. Marked with an exclusive badge only available on the Signature Edition, this package includes:



  • Ultimate Comfort and Convenience package
  • Ultimate Visibility package
  • ActiveSeat™ II equipment
  • JDLink™ 5-year subscription
  • Premium 3.0 or Automation 4.0 activation
  • 4G LTE connectivity hardware
  • Automatic Solution Control*
  • BoomTrac™ Pro 2*
  • ExactApply™ system*



Get all the top-of-the-line comfort features and technology options in one special edition: The John Deere Signature Edition.



For any additional mounting needs, there are part solutions available through John Deere to resolve unique mounting configuration needs.



*NOTE: Automatic Solution Control, BoomTrac Pro 2, and ExactApply system are not available on the 400R and 600R.

Precision Ag Technology enables you to monitor performance and maximize productivity
Connect Mobile actual rate map and pressure map in split screen gives the operator deeper understanding of machine performance Connect Mobile actual rate map and pressure map in split screen gives the operator deeper understanding of machine performance
Connect Mobile overview

John Deere Connect Mobile is a solution that utilizes an Apple® iPad® tablet in the cab that provides the operator a better understanding of the sprayer’s performance. Connect Mobile documents and displays several sprayer performance attributes, helping the operator monitor and more easily detect problems that can occur while spraying. Connect Mobile also has a common user interface that makes it easy to use between different pieces of John Deere equipment. Once the job is done, the iPad with the spraying data can be utilized to perform basic crop scouting activities in the field.

Spraying attributes

Monitor key performance indicators in map layers and dashboard tiles such as:

  • Actual rate
  • Rate deviation
  • Pressure
  • Ground speed
  • Droplet size
  • Target rate
  • Flow rate
  • Tank volume
  • Productivity
  • Fuel rate
In base equipment

Connect Mobile hardware is factory installed on all model year 2022 and newer 408R, 410R, 412R, 612R, 616R, 400 and 600 Series Sprayers and dry machines as well as model year 2017 to 2021 R4030, R4038, R4044, R4045, and R4060 Sprayers, making it easy to get started with Connect Mobile.



Learn more about Connect Mobile in the Field and Crop Solutions section within the Precision Ag Technology product line and how it can improve the quality of a spraying job.



iPad and Apple are trademarks of Apple Inc.

John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions
Connected Support technology Connected Support technology

When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.

John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink™ telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.

With your permission, John Deere Connected Support:

  • Keeps you running by monitoring machine health and promptly alerting you and your dealer of issues
  • Saves time by remotely viewing in-cab displays, reducing trips to the machine
  • Reduces or even eliminates technician trips to a machine through remote diagnostic and remote software reprogramming capabilities
  • Connects experts with the information needed to respond to downtime faster and prevent it altogether

With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.

New Leader® Dry Spinner Spreader offers maximum versatility
New Leader Dry Spinner Spreader on a 400R or 600R New Leader Dry Spinner Spreader on a 400R or 600R

Get three-season flexibility from your application equipment with the New Leader DS20 or DS30 Dry Spinner Spreader.



The DS20 offers of up to 5.6-m3 (200 cu ft), or 6.6 tons, of dry fertilizer, while the DS30 bumps capacity to 8.5 m3 (300 cu ft), or 9 tons, of dry fertilizer. Both models feature:



  • Four-hour conversion from a liquid-application setup
  • Variable-rate application ranging from 34 kg/ha (75 lb/acre) to 3 tons/acre
  • Spread width of up to 32 m (105 ft) thanks to the 1.83-m (72-in.) spinner height
  • New Leader G4 spinner technology for a consistent spread pattern and more uniform application
  • Available in single or the MultApplier (dual product bins) in both the 304 stainless or 409 painted spreader construction with #4 belt-over-chain conveyor
  • The G4 remains the only option for being fully integrated with the John Deere SpreadStar™ dry rate control system.
  • New Leader G4 Edge and G5 are being added into the dry portfolio for model year 2024 machines.
  • Available in the 304 stainless steel single bin or the MultApplier (dual bin options). The MultiBin™ is not an available option currently.
  • Both the G4 Edge and G5 box options on the 400 and 600 series will now offer the AgLeader ISO-VT dry rate controller.

Dry Spinner Spreader comparison chart



New Leader box options - DS20/DS30 dry spinner spreader



G4

G4 Edge

G5

John Deere SpreadStar dry rate control system

X





New Leader ISO-VT dry rate control system



X

X

Left hand and right hand spinner speed control boundary spreading



X



Precision independent spinner control monitoring



X

X

16-section swath width control





X

1/2 width spreading



X

X

Last pass control





X

Automatic feedgate and fan frame control





X

Centralized grease banks

X

X

X

Tarp ready

X

X

X

Automatic chain oiling routine and alarms

X

X

X

304 stainless steel

X

X

X

409 stainless steel

X





MultApplier compatible

X

X

X

Backup camera ready

X

X

X



400R and 600R dry spinner spreader
New Leader G4 -
4800 DS20 G4 - 304 stainless steel, single bin, #4 belt over chain, 13 cm (5 in.) feedgate
4806 DS20 G4 - 304 stainless steel, single bin, #4 belt over chain, 28 cm (11 in.) feedgate
4808 DS20 G4 - 409 painted steel, single bin, #4 belt over chain, 28 cm (11 in.) feedgate
4818 DS20 G4 - 409 painted steel, single bin, #4 belt over chain, 13 cm (5 in.) feedgate
4820 DS20 G4 - 304 stainless steel, MultApplier (dual bin), #4 belt over chain, 13 cm (5 in.) feedgate
4814 DS30 G4 - 304 stainless steel, single bin, #4 belt over chain, 13 cm (5 in.) feedgate
4816 DS30 G4 - 409 painted steel, single bin, #4 belt over chain, 13 cm (5 in.) feedgate
4834 DS30 G4 - 304 stainless steel, MultApplier (dual bin), #4 belt over chain, 13 cm (5 in.) feedgate



400R and 600R dry spinner spreader
New Leader G4 Edge -
4842 DS20 G4 Edge - 304 stainless steel, single bin, #4 belt over chain, 28 cm (11 in.) feedgate
4844 DS20 G4 Edge - 304 stainless steel, single bin, #4 belt over chain, 13 cm (5 in.) feedgate
4846 DS20 G4 Edge - 304 painted steel, MultApplier (dual bin), #4 belt over chain, 13 cm (5 in.) feedgate
4848 DS30 G4 Edge - 304 stainless steel, single bin, #4 belt over chain, 13 cm (5 in.) feedgate
4852 DS30 G4 Edge - 304 stainless steel, MultApplier (dual bin), #4 belt over chain, 13 cm (5 in.) feedgate



400R and 600R dry spinner spreader
New Leader G5 -
4854 DS20 G5 - 304 stainless steel, single bin, #4 belt over chain, 28 cm (11 in.) feedgate
4856 DS20 G5 - 304 stainless steel, single bin, #4 belt over chain, 13 cm (5 in.) feedgate
4858 DS20 G5 - 304 stainless steel, MultApplier (dual bin), #4 belt over chain, 13 cm (5 in.) feedgate
4862 DS30 G5 - 304 stainless steel, single bin, #4 belt over chain, 13 cm (5 in.) feedgate
4864 DS30 G5 - 304 stainless steel, MultApplier (dual bin), #4 belt over chain, 13 cm (5 in.) feedgate

New Leader is a trademark of Highway Equipment Company.

Key Specs
Rated engine power
265 kW
355 hp
Maximum engine power
289 kW
388 hp
Solution system - Capacity
4542.5 L
1200 gal.
Rinse tank capacity
646 L
170 gal.
Boom length options/Material
27.4, 30.5, 36.6, or 40.2 m
90, 100, 120, or 132 ft
Boom material: Steel or carbon fiber
Spray speed range
40 km/h
25 mph
Transport speed, maximum
56.8 km/h
35 mph
Suspension
Dual-strut independent wheel air-ride suspension
Crop clearance with standard tires
147 cm
58 in.
Total weight (empty solution tank)
16,962 kg
37,394 lb
*Includes: 36.6-m (120-ft) steel boom, pressure recirculation, ExactApply™, and 38.1-cm (15-in.) spacing. Weight will vary depending on all options.
Engine
Rated engine power
265 kW
355 hp
Maximum engine power
289 kW
388 hp
Emissions
Final Tier 4 (FT4)
Number of cylinders
Six
Displacement
9.0 L
549 cu in.
Alternator
250 amp
Fuel tank capacity
565 L
149.2 gal.
Diesel exhaust fluid (DEF) tank capacity
29.5 L
7.8 gal.
Solution system
Capacity
4542.5 L
1200 gal.
Tank material
Stainless steel
Rinse tank capacity
646 L
170 gal.
Quick fill size
7.6 cm
3 in.
Automatic section control
John Deere Section Control (optional)
Solution system control
Manual
Option: Automatic
Fill location
Side fill, front fill (optional), and LoadCommand (optional)
Chemical injection method
Direct injection (optional)
Chemical eductor
Stainless steel
Chemical eductor capacity (size)
32 L
8.5 gal.
Flow meter size
5.1 cm
2 in.
Suction strainer
20 mesh
Pressure strainer
50 mesh
Boom strainer
80 mesh
Boom
Boom length options
27.4, 30.5, 36.6, or 40.2 m
90, 100, 120, or 132 ft
Automatic boom height
BoomTrac Pro 2 - five sensor (optional)
Plumbing material
Stainless or polypropylene
Boom Material
Steel or carbon fiber
Ground height adjustment
50 to 245 cm
19.6 to 96.5 in.
Breakaway width
Stainless-steel boom - 3.3 m
10.8 ft
Carbon fiber boom - 3.7 m
12.1 ft
Boom sections
13 sections with boom length: 40.2 m
132 ft
11 sections with boom length: 36.6 m
120 ft
9 sections with boom length: 30.5 m
100 ft
7 sections with boom length: 27.4 m
90 ft
Nozzle spacings
ExactApply™: 38.1 or 51 cm
15 or 20 in.
Drivetrain
Type
Hydrostatic
Drive
Full-time four-wheel drive (4WD)
Shifting
Electrohydraulic
Hydraulic reservoir capacity
98.4 L
26 gal.
Spray speed range
40 km/h
25 mph
Transport speed, maximum
56.8 km/h
35 mph
Chassis
Dry compatible
Yes: 5.7 or 8.5 m3
200 or 300 cu ft
Suspension
Dual-strut independent wheel air-ride suspension
Crop clearance with standard tires
147 cm
58 in.
Front tires
380/105 R50, 420/95 R50, or 480/80 R50
Rear tires
380/105 R50, 420/95 R50, or 480/80 R50
Flotation tires
620/70 R46 or 800/55 R46
Hydraulic tread adjust
Hydraulic
Wheel tread spacing
305 to 406 cm
120 to 160 in.
Wheel base
430 cm
169.3 in.
Turning radius
9.2 m
30.2 ft
Parking brake
Spring-engaged, hydraulically disengaged wet disk pack
Primary brakes
Hydrostatic
Ladder raise/lower
Hydraulic
Total weight (empty solution tank)
16,962 kg
37,394 lb
*Includes: 36.6-m (120-ft) steel boom, pressure recirculation, ExactApply, and 38.1-cm (15-in.) spacing. Weight will vary depending on all options.
Options
Air compressor
Standard: Onboard air
Foam marker capacity
Injection foamer
Additional information
a
a
1
1
D
D
X
